B84142A0030R122

Power Line Filter Modules Overview

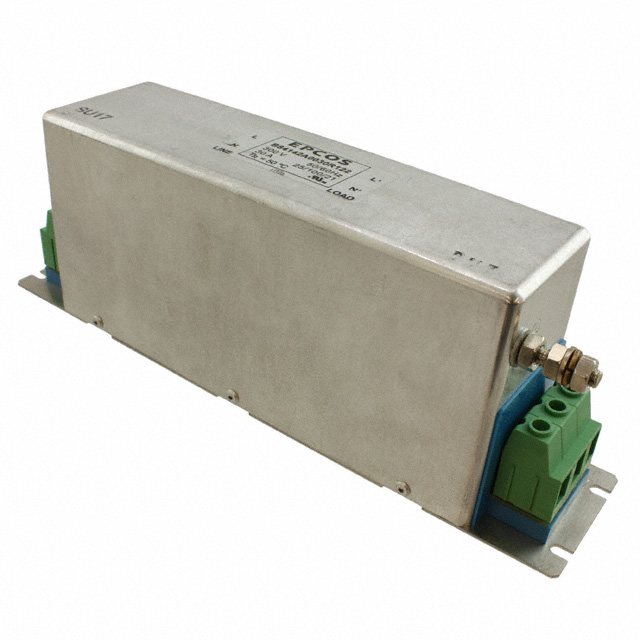

The B84142A0030R122 is a single-phase EMI filter manufactured by EPCOS (TDK). It features a chassis mount design with a rated voltage of 300 VDC/VAC and a nominal current capacity of 30 A. The unit operates within a temperature range of -10°C to 55°C. Physical dimensions are 240 mm in length, 80 mm in width, and 135 mm in height. It includes high potential insulation testing at 3000 V and has a maximum leakage current of 110 mA. The device supports UL, CUL, CSA, and EN certifications.

Power Line Filter Modules Feature Summary

• Chassis mount construction for secure panel installation
• Single-phase electromagnetic interference filtering capability
• High potential insulation rating for electrical safety

Power Line Filter Modules Applications

• Industrial power electronics systems
• Converter and drive applications
• Equipment requiring certified EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific current rating suffix against official TDK-EPCOS documentation, as similar part numbers may indicate different amperage capacities. Confirm that the chassis mounting configuration matches your enclosure requirements. Ensure the operating temperature range aligns with your system's thermal environment. Cross-reference certification marks such as UL and EN with local regulatory standards before integration.

Power Line Filter Modules Selection Notes

Select this component when a single-phase solution is required for 300V systems with moderate current demands. Consider the physical footprint constraints due to its chassis mount form factor. Evaluate the leakage current specifications against sensitive downstream equipment requirements. Verify compatibility with existing panel cutouts and terminal connections.

Power Line Filter Modules Part Context

This component belongs to the B84142A series of EMC filters designed for converters and power electronics. The series provides compact solutions for noise suppression in industrial environments. TDK-EPCOS manufactures these filters to meet international safety and performance standards for electronic equipment.

Power Line Filter Modules Replacement Considerations

Consult official TDK-EPCOS substitution guides for verified alternatives. Do not assume cross-compatibility with other manufacturers' chassis-mounted filters without verifying pinout and electrical parameters.
