B84142B0008R000

Power Line Filter Modules Overview

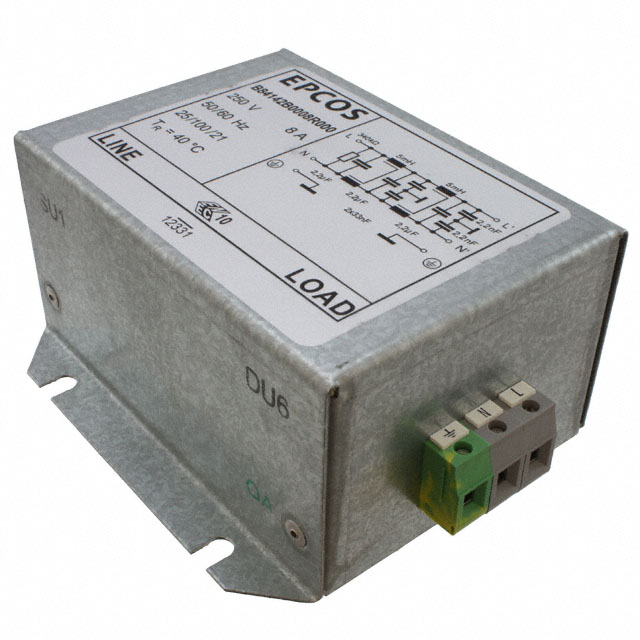

The B84142B0008R000 is a two-line power line EMC filter manufactured by TDK Electronics. It features an 8 A rated current and supports voltage ratings of 250 VAC and 250 VDC. The unit utilizes a chassis mount installation style with terminal block termination. Key electrical specifications include a leakage current of 3.5 mA and a withstand voltage of 1770 V DC for 2 seconds between lines.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for two-line power circuits
• Designed for secure chassis mounting applications
• Utilizes terminal block connections for reliable wiring

Power Line Filter Modules Applications

• Industrial equipment power supply filtering
• Medical device power input protection
• IT infrastructure power conditioning

Power Line Filter Modules Procurement Notes

Verify the complete part number including suffixes to ensure correct voltage and current ratings. Confirm datasheet revisions match project requirements. Check RoHS compliance status if restricted substances are prohibited. Validate physical dimensions against enclosure constraints before ordering.

Power Line Filter Modules Selection Notes

Select this component when an 8 A capacity is required for two-line filtering. Ensure the application environment supports chassis mounting methods. Verify that the 250 VAC rating aligns with the local mains supply standards. Consider the terminal block interface compatibility with existing wiring harnesses.

Power Line Filter Modules Part Context

This component belongs to the B84142B series of power line filters from TDK Electronics. The series offers various current ratings and configurations for EMC compliance in power distribution systems. TDK Electronics, formerly EPCOS, manufactures these components for global industrial markets.

Power Line Filter Modules Replacement Considerations

Consult official substitution lists for equivalent performance. Verify pinout and mechanical footprint compatibility before swapping. Ensure new parts meet identical safety certifications and voltage ratings.
