B84142B0016R000

Power Line Filter Modules Overview

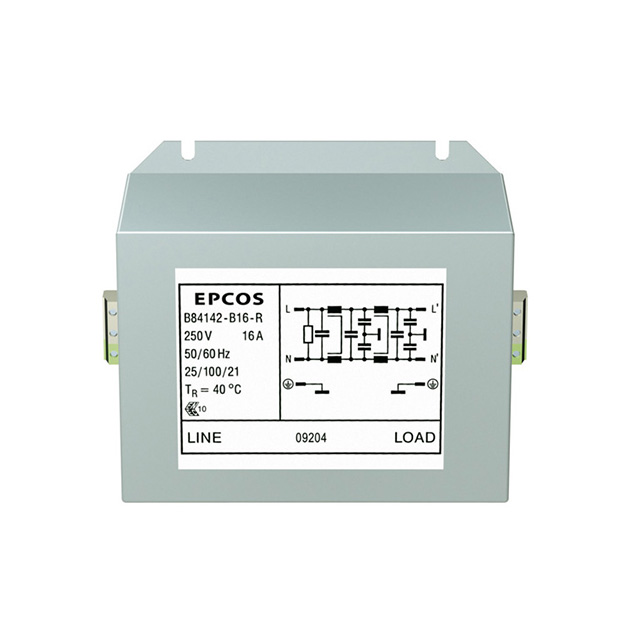

The B84142B0016R000 is a single-phase EMC/EMI line filter designed for power electronics applications. It features a two-stage configuration to provide effective noise suppression in medium- to high-power systems. The component has a rated current of 16 A and supports rated AC and DC voltages of 250 V each. It operates at standard frequencies of 50/60 Hz. Withstand voltage specifications include 1770 V DC for 2 seconds between lines, ensuring robust insulation performance under electrical stress conditions.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Compact design suitable for integration into power converter systems
• Terminal block connection method for secure electrical interfacing

Power Line Filter Modules Applications

• Medium-power one-phase power electronics systems
• High-power one-phase power electronics systems
• Single-phase converter integration

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version corresponding to the B84142B0016R000 part number before procurement. Confirm that the terminal block interface matches the intended PCB or wiring layout requirements. Ensure the 16 A current rating and 250 V voltage limits align with the system's operational parameters. Check for compliance with relevant safety standards required by the target application environment.

Power Line Filter Modules Selection Notes

Select this component when a two-stage EMI filter is required for single-phase applications. The 16 A rating suits medium to high-power loads where compact form factors are necessary. Consider the terminal block termination style if through-hole or screw-terminal mounting is preferred over surface mount alternatives. Validate that the 250 V AC/DC ratings meet the circuit's electrical isolation needs.

Power Line Filter Modules Part Context

This component belongs to the TDK EPCOS B84142B series of power line filters. The series is engineered for electromagnetic compatibility in electronic systems. TDK Electronics manufactures these components to ensure reliability across consumer and industrial sectors. The B84142B designation indicates a specific family of single-phase filters with varying current and voltage capabilities.

Power Line Filter Modules Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing designs using identical electrical specifications and mechanical dimensions before considering alternative components.
