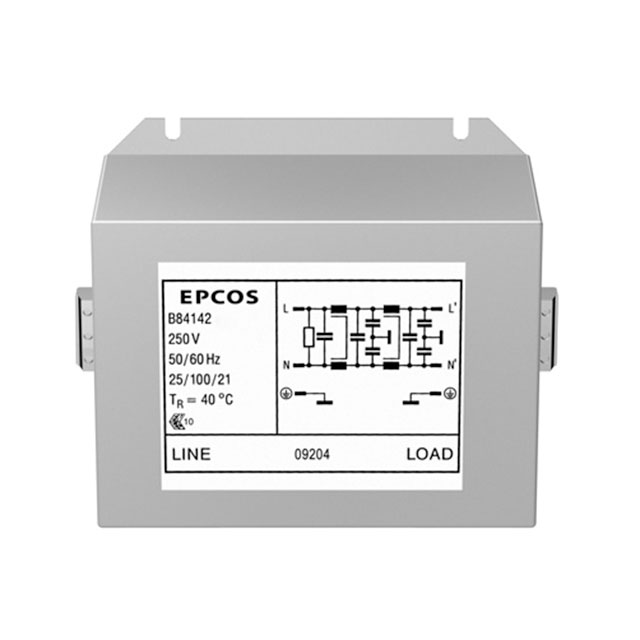

B84142B0025R000 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is LINE FILTER 250VAC/VDC 25A CHASS. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for B84142B0025R000
- Description：LINE FILTER 250VAC/VDC 25A CHASS
- Series：B84142B
- Mfr：EPCOS - TDK Electronics
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：250V
- Voltage - Rated AC：250V
- Current：25 A
- Frequency - Operating：50 ~ 60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：ENEC
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block, Threaded Post (M6)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for B84142B0025R000
Power Line Filter Modules Overview
The B84142B0025R000 is a single-phase EMI/EMC power line filter manufactured by TDK. It features a rated AC voltage of 250 VAC and a DC voltage rating of 250 VDC, with a continuous current rating of 25 A. The component operates at frequencies of 50 Hz and 60 Hz. It utilizes a two-stage filtering architecture to suppress electromagnetic interference. The housing provides IP21 protection for safety. Termination is achieved via terminal block and threaded M6 posts.
Power Line Filter Modules Feature Summary
- Two-stage EMI/EMC filtering architecture
- IP21 protective housing design
- Dual termination options including terminal block and threaded posts
Power Line Filter Modules Applications
- Industrial power supply units
- Medical equipment power inputs
- Office automation devices
Power Line Filter Modules Procurement Notes
Verify the specific suffix code against the manufacturer datasheet to confirm exact electrical characteristics and mechanical dimensions. Ensure that the required current rating and voltage specifications match the application requirements. Confirm compliance certifications such as UL, CSA, and IEC/EN are valid for the target market. Check for RoHS compliance status if environmental regulations apply.
Power Line Filter Modules Selection Notes
Select this component based on the 25 A current capacity and 250 VAC/DC voltage ratings. Consider the two-stage filtering requirement for effective noise suppression. Evaluate the IP21 housing suitability for the installation environment. Verify compatibility with existing mounting structures due to the specific terminal block and M6 post configuration.
Power Line Filter Modules Part Context
This part belongs to the B84142B series of power line filters from TDK. The series includes various models with different current ratings and voltage specifications. These filters are designed for mains connection applications requiring robust EMI suppression. The B84142B0025R000 represents a specific variant within this family optimized for 25 A operation.
Power Line Filter Modules Replacement Considerations
Consult official TDK documentation for direct cross-references. No public substitute part numbers are confirmed in the provided data.
