B84143A0010R106

Power Line Filter Modules Overview

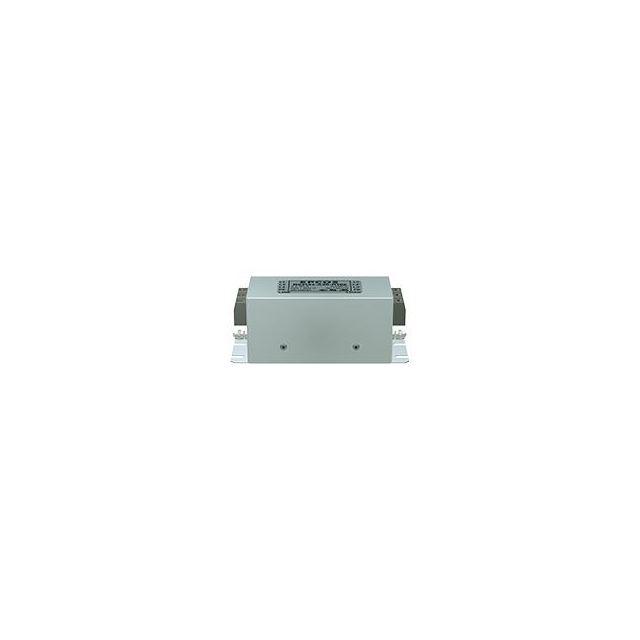

The B84143A0010R106 is a three-phase delta EMC/EMI power line filter manufactured by TDK Electronics. It supports a rated current of 10 A and operates at frequencies of 50 to 60 Hz with a single-stage configuration. Designed for chassis mounting, the component utilizes terminal block termination for secure electrical connections. The unit functions within an ambient temperature range of -25°C to 100°C and holds cUR, ENEC, and UR certifications.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase delta configurations
• Features robust chassis mounting design for industrial stability
• Utilizes terminal block termination for reliable circuit integration

Power Line Filter Modules Applications

• Industrial converter systems
• Power supply units requiring EMI reduction
• Three-phase AC equipment protection

Power Line Filter Modules Procurement Notes

Verify the specific manufacturer part number against official TDK documentation to ensure compatibility with your system requirements. Confirm that the terminal block interface matches your wiring infrastructure. Check certification marks such as cUR and ENEC against local regulatory standards before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select this component when designing three-phase delta circuits requiring 10 A filtering capacity. Ensure the chassis mounting style fits the available enclosure space. Verify that the operating temperature range meets environmental conditions. Confirm voltage ratings align with the specific IT mains supply or standard AC network being utilized in the application.

Power Line Filter Modules Part Context

This component belongs to the B84143A series of EMC filters produced by TDK Electronics. The series focuses on providing effective noise suppression for industrial power applications. The specific model integrates single-stage filtering capabilities into a durable housing suitable for demanding operational environments.

Power Line Filter Modules Replacement Considerations

Consult official TDK substitution guides for verified alternatives. Cross-reference technical specifications including current rating and phase configuration to ensure functional equivalence.
