B84143A0010R107

Power Line Filter Modules Overview

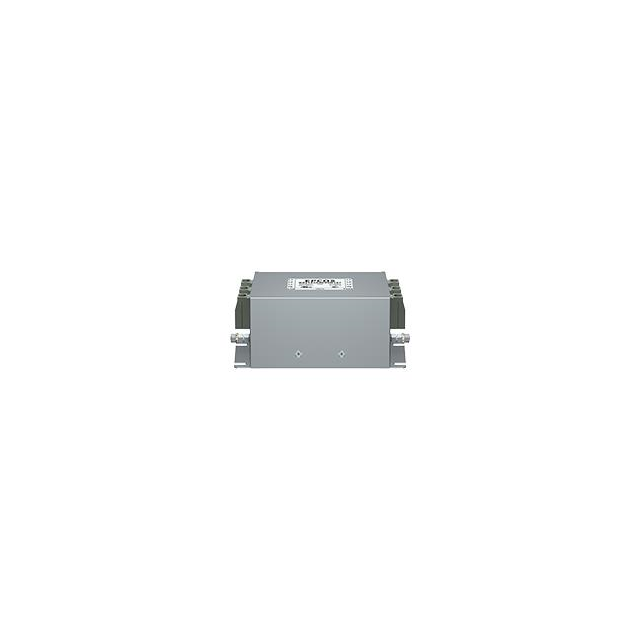

The B84143A0010R107 is a three-phase EMC power line filter manufactured by TDK (EPCOS). It features a rated voltage of 300/520 V AC at 50/60 Hz and supports a maximum current of 10 A. Designed for chassis mounting with terminal block connections, the unit measures 148 mm in length, 58 mm in height, and 58 mm in depth. The component operates within a temperature range of -25°C to +100°C, exhibits a leakage current of 3.1 mA, and has a resistance value of 12.9 mΩ. It complies with UL, CSA, and IEC/EN standards.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase systems
• Utilizes a lightweight design optimized for easy installation
• Features terminal block termination for secure electrical connections

Power Line Filter Modules Applications

• Three-phase converter systems
• Industrial power electronics equipment
• General industrial machinery requiring EMI filtering

Power Line Filter Modules Procurement Notes

Verify the specific suffix R107 against official TDK documentation to confirm exact physical dimensions and certification status. Ensure the input voltage matches the 300/520 V AC rating. Confirm that the terminal block interface aligns with existing panel wiring requirements before procurement.

Power Line Filter Modules Selection Notes

Select this component when a single-stage three-phase filter is required for 10 A applications. Verify that the chassis mounting style fits the enclosure constraints. Check that the operating temperature range meets environmental conditions. Ensure compatibility with IT mains supply ratings if applicable.

Power Line Filter Modules Part Context

This part belongs to the B84143A series of three-phase EMC filters from TDK Electronics. These components are engineered for robust performance in industrial environments. The series offers various current ratings and voltage configurations to suit different power distribution needs while maintaining compact form factors.

Power Line Filter Modules Replacement Considerations

Consult official TDK cross-reference lists for verified substitutes. Ensure replacement parts match the 10 A current rating and 300/520 V AC voltage specifications. Verify identical mounting dimensions and terminal block types to maintain mechanical compatibility.
