B84143A0016R000

Power Line Filter Modules Overview

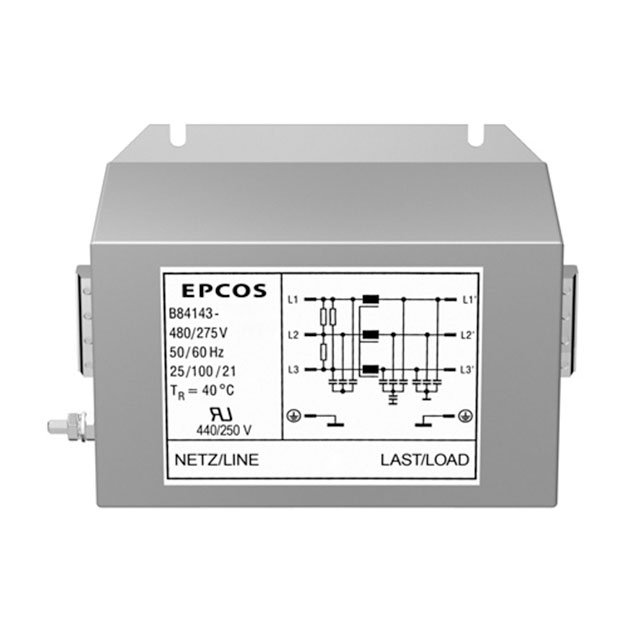

The B84143A0016R000 is a three-phase (Delta) EMC/EMI line filter module manufactured by EPCOS, part of the TDK Electronics portfolio. It features a rated current of 16 A and supports nominal AC voltages of 480 V and 275 V at frequencies between 50 Hz and 60 Hz. The unit utilizes a single-stage filtering design with terminal block connections via threaded M6 posts. Designed for flange mounting, this component provides electromagnetic interference suppression for industrial power systems.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase delta configurations
• Utilizes single-stage filtering architecture for efficient noise reduction
• Features robust mechanical construction with flange mounting capability
• Employs threaded post terminals for secure electrical connections

Power Line Filter Modules Applications

• Industrial power distribution networks requiring EMI mitigation
• Three-phase motor drive systems and variable frequency drives
• Regenerative inverter systems adhering to IEC/TS 62578 standards
• Electrical equipment subject to strict emission limits in the 9-150 kHz range

Power Line Filter Modules Procurement Notes

Verify that the application voltage does not exceed the 480V/275VAC rating. Confirm compatibility with the 16A continuous current requirement. Ensure the mounting surface supports the flange installation method. Check that the M6 threaded post terminals align with the system's wiring infrastructure. Validate that the three-phase delta configuration matches the source supply topology.

Power Line Filter Modules Selection Notes

Select this model when specific attenuation requirements for three-phase delta systems are necessary. Consider the physical dimensions for flange mounting availability. Evaluate the thermal performance under continuous 16A load conditions. Compare against other B84143 series variants if different current ratings or voltage classes are required. Assess the need for additional damping resistors if not integrated within the module.

Power Line Filter Modules Part Context

This component belongs to the B84143 series of power line filters designed by EPCOS for industrial applications. The series offers various configurations including LCL filters for regenerative inverter systems. These filters aim to reduce line-side current harmonics and suppress clock frequency emissions. The product line complies with international standards for electromagnetic compatibility in power electronics environments.
