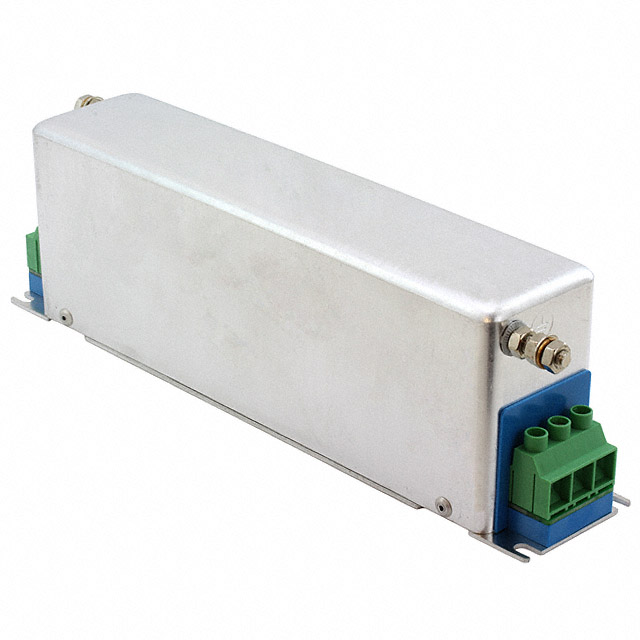

B84143A0016R105 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is LINE FILTER 520V/300VAC 16A CHAS. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for B84143A0016R105
- Description：LINE FILTER 520V/300VAC 16A CHAS
- Series：B84143A
- Mfr：EPCOS - TDK Electronics
- Package：Bulk
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V, 300V
- Current：16 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cUR, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for B84143A0016R105
Power Line Filter Modules Overview
The B84143A0016R105 is a three-phase EMI/EMC power line filter manufactured by TDK (EPCOS). It features a rated current of 16 A and voltage ratings of 300 VAC and 520 VAC. The device operates at frequencies of 50 Hz and 60 Hz with a leakage current of 5 mA. Designed for chassis mounting, it utilizes terminal block connections. The unit weighs 2.608 kg and holds UL, CSA, and IEC/EN compliance certifications.
Power Line Filter Modules Feature Summary
- Provides electromagnetic interference suppression for three-phase power lines
- Engineered for robust chassis mounting applications
- Utilizes terminal block termination for secure electrical connections
Power Line Filter Modules Applications
- Industrial machinery power conditioning
- Three-phase motor drive systems
- Commercial building infrastructure power distribution
Power Line Filter Modules Procurement Notes
Verify the specific part number suffix against official TDK documentation to confirm exact terminal configuration and housing style. Ensure the application environment matches the specified 300 VAC or 520 VAC ratings. Confirm that chassis mounting provisions align with the installation site requirements before procurement.
Power Line Filter Modules Selection Notes
Select this component when a three-phase solution is required for currents up to 16 A. Verify that the system voltage does not exceed the 520 VAC rating. Consider the physical weight and chassis mounting requirements during mechanical design integration. Ensure compatibility with standard terminal block wiring practices.
Power Line Filter Modules Part Context
This component belongs to the B84143 series of EMC filters from TDK's EPCOS division. The series offers various current ratings and configurations for industrial power line filtering. This specific model addresses mid-range current requirements in three-phase AC power systems.
Power Line Filter Modules Replacement Considerations
Consult official TDK cross-reference lists for verified substitutes. Ensure any replacement maintains identical three-phase topology, current rating, and voltage specifications. Verify mechanical mounting dimensions and terminal types match the existing assembly constraints.
