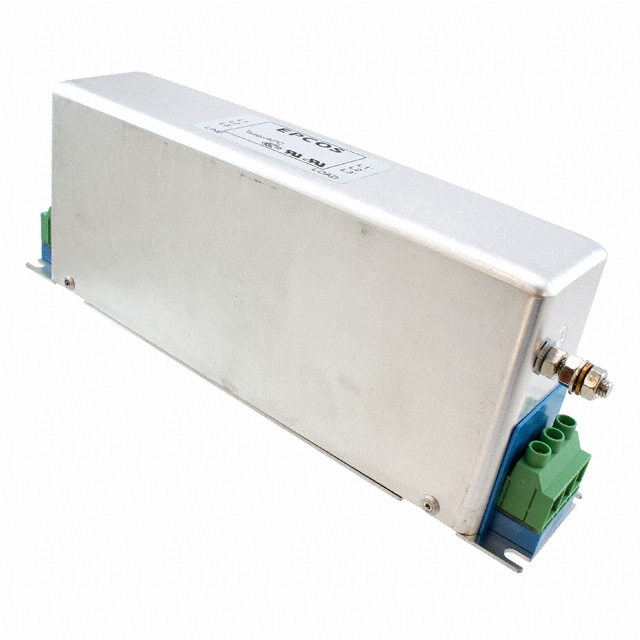

B84143A0025R105 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is LINE FILTER 520V/300VAC 25A CHAS. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for B84143A0025R105
- Description：LINE FILTER 520V/300VAC 25A CHAS
- Series：B84143A
- Mfr：EPCOS - TDK Electronics
- Package：Bulk
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V, 300V
- Current：25 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cUR, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for B84143A0025R105
Power Line Filter Modules Overview
The B84143A0025R105 is a three-phase EMI/EMC power line filter manufactured by TDK (EPCOS). It features a chassis mount design with finger-safe terminal blocks for secure installation. The unit supports operating frequencies of 50 Hz and 60 Hz, with voltage ratings of 300 VAC and 520 VAC. Rated for 25 A current, it maintains a leakage current of 5 mA. Compliance certifications include UL, CSA, and IEC/EN standards.
Power Line Filter Modules Feature Summary
- Provides electromagnetic interference suppression for three-phase systems
- Utilizes finger-safe terminal blocks for safe electrical connections
- Designed for robust chassis mounting in industrial environments
Power Line Filter Modules Applications
- General purpose power conditioning
- Converter and power electronics filtering
- Three-phase system protection
Power Line Filter Modules Procurement Notes
Verify the specific part number suffix to ensure correct current and voltage ratings. Confirm compliance requirements such as UL or CSA match project specifications. Check terminal block compatibility with existing wiring infrastructure. Ensure chassis mounting dimensions fit the enclosure layout. Validate that the 5 mA leakage current meets safety standards for the intended application.
Power Line Filter Modules Selection Notes
Select this component for applications requiring certified EMC filtering in three-phase setups. Consider the 25 A rating against peak load currents. Evaluate the 300/520 VAC rating against supply voltages. Assess the chassis mount style against available space. Verify frequency compatibility with 50/60 Hz operations.
Power Line Filter Modules Part Context
This component belongs to the B84143A series of power line filters from TDK's EPCOS division. The series offers various current ratings and configurations for industrial power management. These filters are engineered to meet stringent international EMC standards for noise reduction in power distribution networks.
Power Line Filter Modules Replacement Considerations
Consult official TDK documentation for direct cross-references. Verify pinout and mounting hole patterns before substitution. Ensure replacement units meet identical voltage and current ratings.
