B84143A0035R106

Power Line Filter Modules Overview

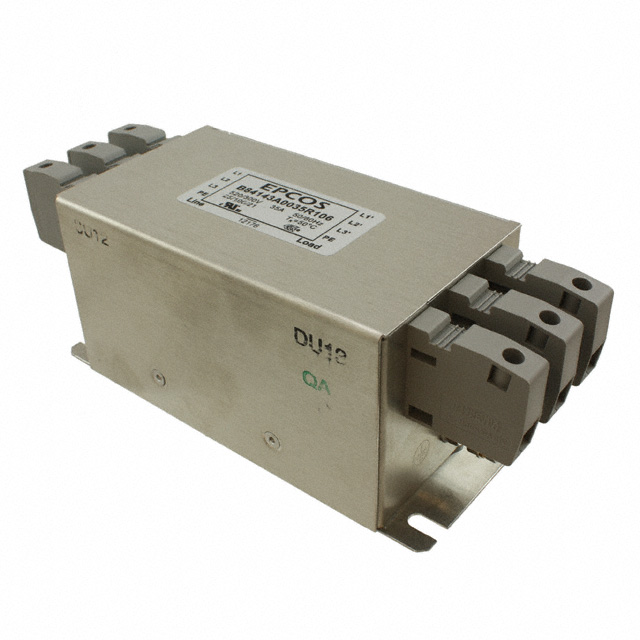

The B84143A0035R106 is a three-phase EMC power line filter designed for converters and power electronics applications. It supports rated AC voltages of 520V and 300V at operating frequencies of 50Hz and 60Hz. The component handles a maximum current of 35A with a leakage current of 3.4mA. It features a single-stage configuration and chassis mounting via terminal blocks. The unit operates within a temperature range of -25°C to 100°C, has dimensions of 217mm length, 84.5mm depth, and 80mm height, and includes a resistance value of 1.1mΩ.

Power Line Filter Modules Feature Summary

• Three-phase filtering configuration for delta connections
• Chassis mount design with screw termination style
• Compliant with UL 1283 standards

Power Line Filter Modules Applications

• Power converter systems
• Industrial power electronics
• Regenerative drive systems

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official TDK/EPCOS documentation to ensure correct voltage ratings and termination styles. Confirm that the 35A current rating aligns with system requirements. Check for RoHS3 compliance status in the latest datasheet. Ensure mounting hardware matches the chassis mount specification. Validate frequency compatibility for 50Hz or 60Hz operations before procurement.

Power Line Filter Modules Selection Notes

Select this component for three-phase applications requiring 35A capacity and 520V/300V AC ratings. Consider the chassis mount form factor for panel integration. Verify thermal management capabilities within the -25°C to 100°C operating range. Ensure the single-stage filter topology meets EMI suppression needs for converters. Compare physical dimensions against available enclosure space.

Power Line Filter Modules Part Context

This component belongs to the B84143A series of three-line filters manufactured by EPCOS, now part of TDK Electronics. These filters are engineered for use in converters and power electronics. The series provides solutions for electromagnetic interference suppression in industrial environments. The product line emphasizes robust construction for demanding electrical applications.

Power Line Filter Modules Replacement Considerations

Consult official TDK/EPCOS substitution guides for verified alternatives. Cross-reference specifications such as current rating, voltage, and mounting style when evaluating substitutes. Ensure any replacement maintains compliance with relevant safety standards like UL 1283.
