B84143A0035R107

Power Line Filter Modules Overview

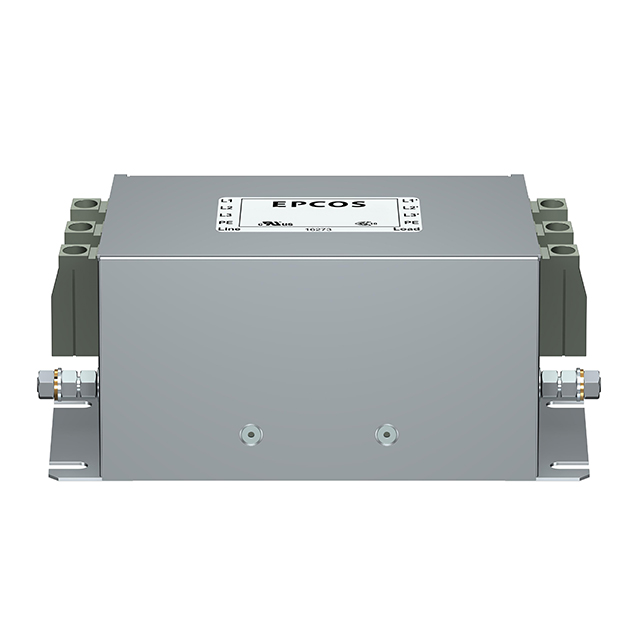

The EPCOS B84143A0035R107 is a three-phase EMC power line filter designed for industrial applications. It supports a rated current of 35 A and operates at voltages of 300 V AC or 520 V AC at 50/60 Hz. The unit features block terminal connections and chassis mounting. Its physical dimensions are 148 mm in length, 91 mm in width, and 58 mm in height. The device functions within a temperature range of -25°C to +100°C and has a leakage current of 3.1 mA.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power lines
• Utilizes block terminal connections for secure electrical interfacing
• Designed for chassis mounting to facilitate integration into control cabinets

Power Line Filter Modules Applications

• Industrial drive systems
• Power electronics converters
• Three-phase motor controls

Power Line Filter Modules Procurement Notes

Verify the specific suffix R107 against the manufacturer datasheet to confirm terminal type and housing configuration. Ensure the input voltage matches the 300/520 V AC rating. Confirm that the required current capacity meets the 35 A specification for the intended load. Check compliance requirements such as UL 1283 if applicable to the final equipment assembly.

Power Line Filter Modules Selection Notes

Select this component when a three-phase filter with a 35 A continuous current rating is required. The 300/520 V AC rating suits standard industrial supply networks. Consider the chassis mount style and block terminals for panel integration. Verify thermal management capabilities given the operating temperature range up to 100°C.

Power Line Filter Modules Part Context

This part belongs to the B84143A series of three-line filters from TDK Electronics. The series covers various current ratings and voltage configurations for power electronics. The R107 suffix typically denotes specific terminal and housing variations within the product family.

Power Line Filter Modules Replacement Considerations

Consult official substitution lists for equivalent current and voltage ratings. Verify mechanical footprint compatibility for chassis mounting. Ensure terminal types match existing wiring infrastructure.
