B84143A0035R410

Power Line Filter Modules Overview

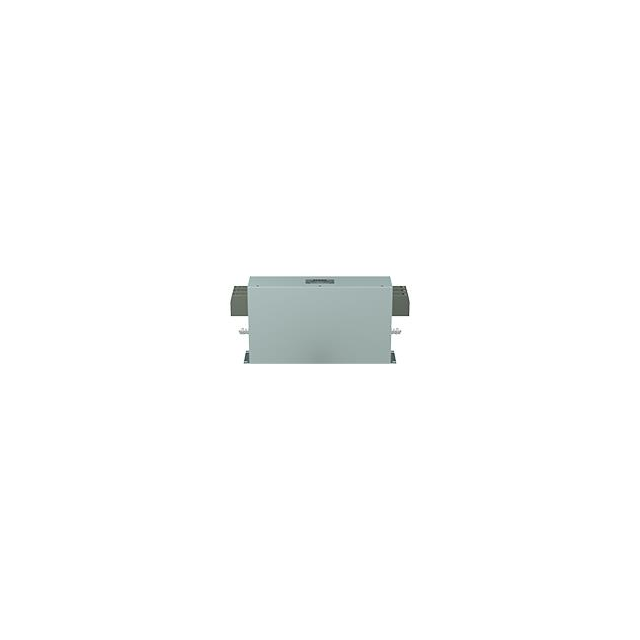

The B84143A0035R410 is a three-phase EMI power line filter manufactured by TDK Electronics. It features a rated current of 35 A and operates at voltages of 300 VAC and 520 VAC within the 50 to 60 Hz frequency range. Designed for chassis mounting with terminal block connections, this component supports converter applications. It complies with UL and cUL safety standards, ensuring reliable electromagnetic interference suppression in industrial power electronics environments.

Power Line Filter Modules Feature Summary

• Provides effective electromagnetic interference suppression for three-phase power lines
• Engineered for stable switching characteristics and thermal performance in high-power cabinets
• Utilizes terminal block termination for secure electrical connections

Power Line Filter Modules Applications

• High-power motor control cabinets
• Industrial converter systems
• Power electronics equipment requiring EMI filtering

Power Line Filter Modules Procurement Notes

Verify part authenticity through factory-sealed packaging and recent date codes. Confirm compatibility with existing system specifications before procurement. Ensure the supplier provides genuine components matching the original manufacturer's standards to maintain operational reliability and safety compliance in critical power applications.

Power Line Filter Modules Selection Notes

Select this model for applications requiring 35 A capacity and 300/520 VAC rating. Consider chassis mounting constraints and terminal block interface requirements. Evaluate thermal behavior needs for high-power motor control environments. Ensure the selected filter aligns with specific converter system electromagnetic compatibility standards and physical installation dimensions.

Power Line Filter Modules Part Context

This component belongs to the B84143 series of three-line filters designed for converters and power electronics. The series offers various current ratings and voltage configurations tailored for industrial use. Manufactured under the EPCOS brand now integrated into TDK Electronics, these filters address stringent electromagnetic interference requirements in modern power conversion systems.

Power Line Filter Modules Replacement Considerations

B84143A0035R166 serves as an alternative variant within the same product family. Verify that substitute models match the required current rating, voltage specifications, and mounting configuration to ensure seamless integration without compromising system performance or safety certifications.
