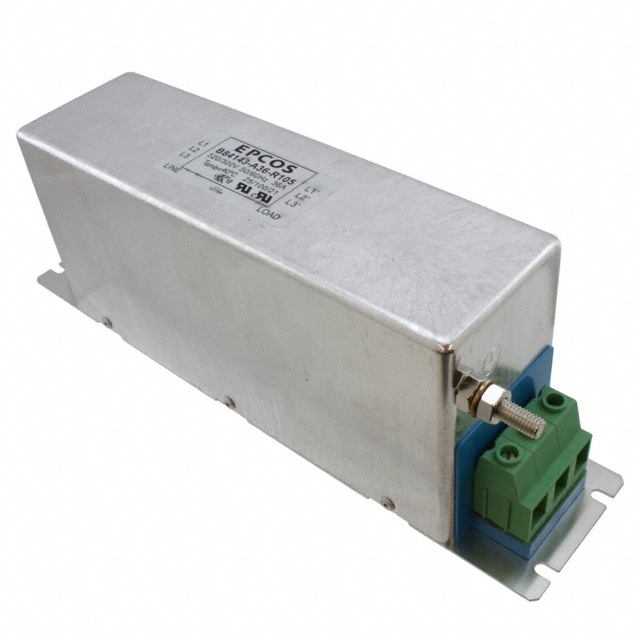

B84143A0036R105 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is LINE FILTER 520V/300VAC 36A CHAS. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for B84143A0036R105
- Description：LINE FILTER 520V/300VAC 36A CHAS
- Series：B84143A
- Mfr：EPCOS - TDK Electronics
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V, 300V
- Current：36 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cUR, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for B84143A0036R105
Power Line Filter Modules Overview
The B84143A0036R105 is a three-phase EMI/EMC power line filter manufactured by TDK Electronics (EPCOS). It operates at rated voltages of 300 VAC and 520 VAC with a frequency range of 50 Hz to 60 Hz. The unit supports a maximum current of 36 A and utilizes a metal case construction for durability. Designed for chassis mounting, it features finger-safe terminal blocks for secure connections. The filter includes a single-stage configuration to suppress electromagnetic interference in industrial power systems.
Power Line Filter Modules Feature Summary
- Three-phase filtering capability for delta configurations
- Metal case construction for robust physical protection
- Finger-safe terminal block design for enhanced operator safety
Power Line Filter Modules Applications
- Industrial converter systems
- Power electronics equipment
- Three-phase AC power distribution networks
Power Line Filter Modules Procurement Notes
Verify the specific part number against official TDK/EPCOS documentation to confirm electrical ratings and mechanical dimensions. Ensure compatibility with existing chassis mounting hardware and terminal block specifications before integration into power systems.
Power Line Filter Modules Selection Notes
Select this component for applications requiring three-phase noise suppression at 36 A. Confirm that the 300/520 VAC rating matches the system voltage. Verify that the chassis mount style and terminal block interface align with the installation requirements.
Power Line Filter Modules Part Context
This component belongs to the B84143A*R105 series of power line filters designed for three-phase systems. The series covers a wide current range from 8 A to 150 A, offering standardized solutions for industrial EMC compliance across various power levels.
Power Line Filter Modules Replacement Considerations
Consult official TDK substitution guides for verified alternatives. Cross-reference current ratings and voltage specifications when considering equivalent models from other manufacturers.
