B84143A0050R105

Power Line Filter Modules Overview

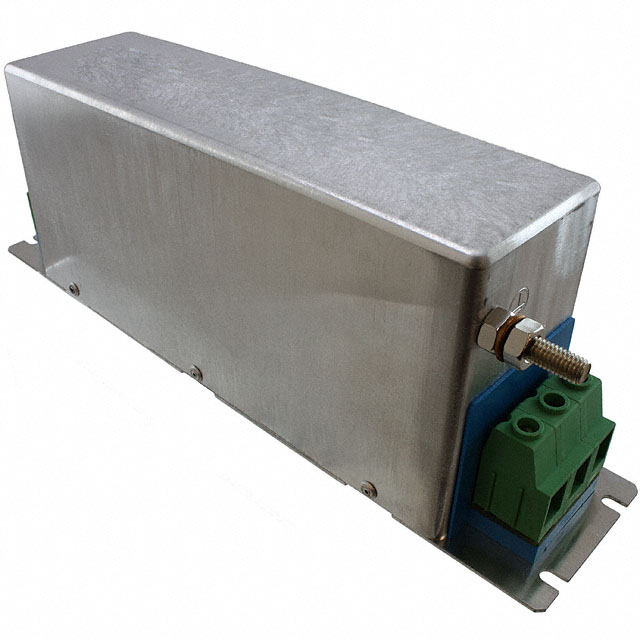

The B84143A0050R105 is a three-phase EMI/EMC power line filter manufactured by TDK. It features a rated voltage of 300 VAC and 520 VAC, with a maximum current rating of 50 A. Designed for chassis mounting via terminal blocks, the unit operates at frequencies of 50 Hz and 60 Hz. Key electrical specifications include a leakage current of 5 mA and a weight of 2.608 kg. The component complies with UL, CSA, and IEC/EN standards.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power lines
• Utilizes a robust chassis mount design for secure installation
• Connects via terminal block interface for reliable electrical contact

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase motor drive systems
• General purpose power line filtering

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix to ensure correct voltage and current ratings match the application requirements. Confirm compliance certifications such as UL and IEC/EN are required for the target market. Check datasheet details for terminal block torque specifications and mounting hole dimensions prior to integration into the final assembly.

Power Line Filter Modules Selection Notes

Select this component when a 50 A three-phase filter is required for 300/520 VAC systems. Ensure the chassis mounting style and terminal block termination align with the enclosure design. Verify that the 5 mA leakage current meets safety isolation requirements for the specific equipment being protected against conducted emissions.

Power Line Filter Modules Part Context

This component belongs to the B84143A series of power line filters from TDK Electronics. The series offers various current ratings and voltage configurations for industrial EMC applications. Similar models in the lineup include variants with different amperage capacities or housing styles, allowing for scalable noise suppression solutions across different power levels.

Power Line Filter Modules Replacement Considerations

Cross-reference with other B84143A series parts for identical electrical ratings if sourcing issues arise. Ensure any substitute maintains the same three-phase configuration, chassis mount form factor, and terminal block connectivity to guarantee mechanical and electrical compatibility.
