B84143A0050R106

Power Line Filter Modules Overview

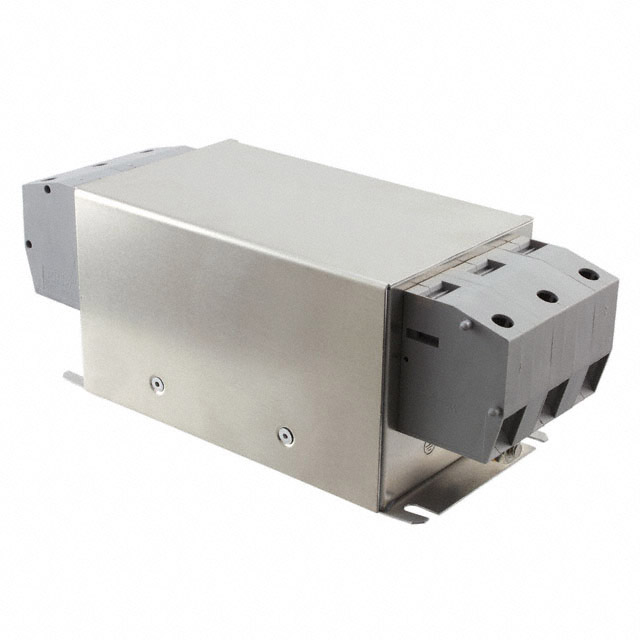

The B84143A0050R106 is a three-phase EMC line filter manufactured by TDK Electronics (formerly EPCOS). It supports a rated current of 50 A and operates at voltages up to 520 V AC. The device functions at standard frequencies of 50 Hz and 60 Hz. It utilizes terminal block connections for electrical interfacing and is designed for chassis mounting. The unit complies with UL, CSA, and IEC/EN standards.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power lines
• Designed specifically for use with converters and power electronics applications
• Features a single-stage filtering architecture

Power Line Filter Modules Applications

• Converter systems
• Power electronics equipment
• General purpose industrial machinery

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirements against the datasheet, as sources indicate both 520 V AC and 300 V specifications. Confirm that the terminal block interface matches the panel design. Ensure the chassis mounting method aligns with the enclosure structure. Check for required certifications such as UL or ENEC based on regional regulations.

Power Line Filter Modules Selection Notes

Select this component when a three-phase solution is required for high-current applications up to 50 A. The terminal block connection style suits fixed wiring installations. Verify compatibility with 50/60 Hz supply networks. Consider the physical dimensions and chassis mounting constraints during mechanical integration planning.

Power Line Filter Modules Part Context

This part belongs to the B84143A series of three-line filters intended for converters and power electronics. It represents a standard offering from TDK Electronics for industrial noise suppression. The series includes variants with different current ratings and connection types, such as screw terminals or flange mounts.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official TDK distributors for cross-reference data.
