B84143A0080R107

Power Line Filter Modules Overview

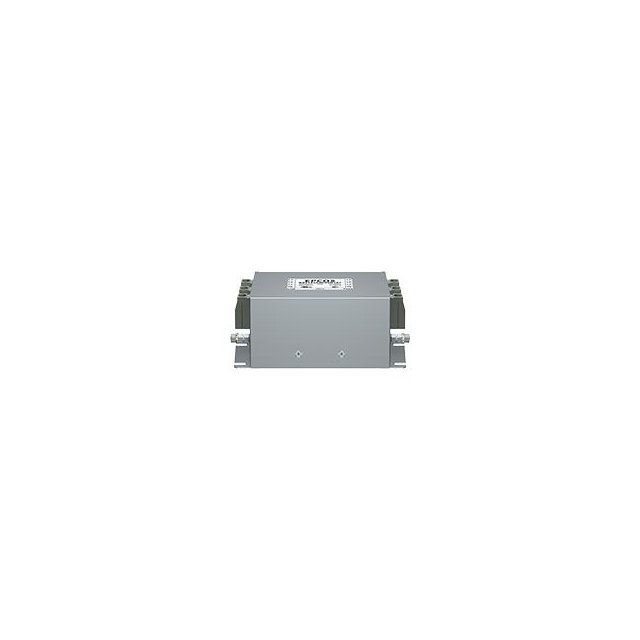

The B84143A0080R107 is a three-phase EMC/EMI power line filter manufactured by EPCOS (TDK). It features a rated voltage of 300 VAC and 520 VAC, with a current rating of 80 A. Designed for chassis mounting, the unit utilizes terminal block termination. The component belongs to the B82801 series and is packaged in a box configuration.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase systems
• Supports high-current industrial applications up to 80 amperes
• Engineered for secure chassis mounting via terminal blocks

Power Line Filter Modules Applications

• Three-phase power conditioning systems
• Industrial motor drive installations
• Regenerative frequency converter setups

Power Line Filter Modules Procurement Notes

Verify the specific suffix R107 against official TDK documentation to confirm exact physical dimensions and terminal specifications. Ensure the procurement channel provides valid traceability for this electronic component. Confirm compliance with relevant safety standards prior to integration into final equipment assemblies.

Power Line Filter Modules Selection Notes

Select this model when a three-phase filter capable of handling 80 A continuous current is required. Verify that the system operates within the 300/520 VAC rated voltage limits. Ensure the installation environment supports chassis mounting and that terminal block connections align with the wiring infrastructure design requirements.

Power Line Filter Modules Part Context

This component is part of the B84143 series of power line filters from EPCOS (TDK). These filters are designed to attenuate conducted electromagnetic interference in AC power lines. The series includes various ratings to accommodate different current and voltage requirements across industrial electronics and power conversion applications.

Power Line Filter Modules Replacement Considerations

Consult official TDK substitution guides for verified alternatives. Ensure any replacement maintains identical three-phase topology, 80 A current capacity, and 300/520 VAC voltage ratings. Physical mounting compatibility must be confirmed before swapping components.
