B84143A0090R105

Power Line Filter Modules Overview

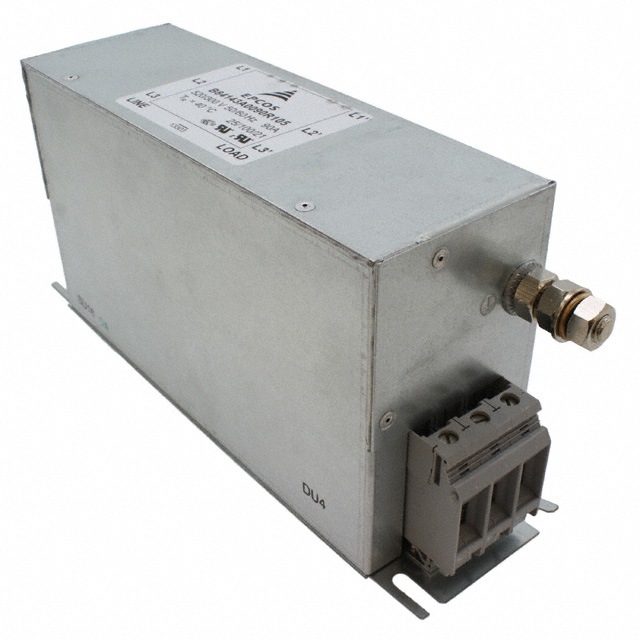

The B84143A0090R105 is a three-phase EMC/EMI line filter manufactured by EPCOS, part of the TDK Electronics portfolio. Designed for industrial power systems, it operates at rated voltages of 520 V AC and 300 V AC with a frequency range of 50 Hz to 60 Hz. The component supports a rated current of 90 A and features a metal case construction. It utilizes terminal block termination styles and is suitable for chassis mounting applications.

Power Line Filter Modules Feature Summary

• Reduces electromagnetic interference and conducted emissions in industrial power systems
• Constructed with a durable metal case for robust performance
• Designed specifically for three-phase system configurations

Power Line Filter Modules Applications

• Industrial power systems requiring EMI suppression
• Three-phase equipment installation
• Chassis-mounted electronic assemblies

Power Line Filter Modules Procurement Notes

Verify that the specific application voltage does not exceed the 520 V AC or 300 V AC ratings. Confirm that the operating current remains within the 90 A limit. Ensure the mounting environment accommodates the chassis mount style and terminal block connections. Check compliance requirements against UL, CSA, and IEC/EN standards before integration.

Power Line Filter Modules Selection Notes

Select this component when a three-phase filter is required for currents up to 90 A. The metal case design provides structural integrity for heavy-duty environments. Terminal block termination allows for secure wiring connections. Verify that the physical dimensions and mounting holes align with the available chassis space.

Power Line Filter Modules Part Context

This component belongs to the B84143A series of power line filters intended for 3-phase systems. The series covers a wide range of rated currents from 8 A to 150 A. These filters are engineered to meet strict emission standards for industrial machinery and power conversion equipment.

Power Line Filter Modules Replacement Considerations

Consult official TDK documentation for direct substitutes within the B84143A series. Alternative models may offer different current ratings or termination styles while maintaining similar electrical characteristics.
