B84143A0150R410

Power Line Filter Modules Overview

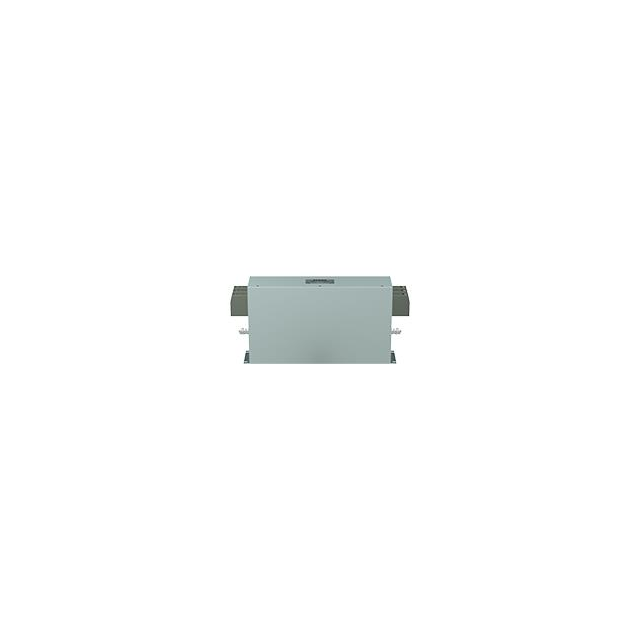

The B84143A0150R410 is a three-phase EMC power line filter manufactured by EPCOS (TDK Electronics). It features a chassis mount design with block terminal connections. The unit supports rated voltages of 300 VAC and 520 VAC at operating frequencies of 50 Hz and 60 Hz. It handles a rated current of 150 A with a leakage current of 5 mA. The device operates within a temperature range of -25°C to 100°C and weighs approximately 13.5 kg.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power lines
• Designed for secure chassis mounting applications
• Utilizes block terminal interfaces for electrical connections

Power Line Filter Modules Applications

• Industrial power conditioning systems
• Three-phase motor drive installations
• Heavy machinery power input stages

Power Line Filter Modules Procurement Notes

Verify the specific suffix code against official TDK documentation to confirm voltage ratings and terminal configurations. Ensure the chassis mounting hardware matches the physical dimensions specified in the datasheet. Confirm compliance requirements such as UL or IEC standards are met for the target region before procurement.

Power Line Filter Modules Selection Notes

Select this component when high current capacity of 150 A is required for three-phase filtering. Consider the chassis mount style if panel integration is preferred over PCB mounting. Verify that the operating temperature range of -25°C to 100°C aligns with the environmental conditions of the installation site.

Power Line Filter Modules Part Context

This part belongs to the B84143 series of power line filters from EPCOS, now part of TDK Electronics. The series is engineered for industrial environments requiring robust EMI/EMC protection. These filters are typically integrated into power distribution units to mitigate conducted emissions generated by switching devices.

Power Line Filter Modules Replacement Considerations

Consult official TDK cross-reference lists for verified substitutes. Ensure any replacement maintains the 150 A rating and 300/520 VAC voltage specifications. Verify mechanical compatibility for chassis mounting and terminal block alignment.
