B84143A0180R000

Power Line Filter Modules Overview

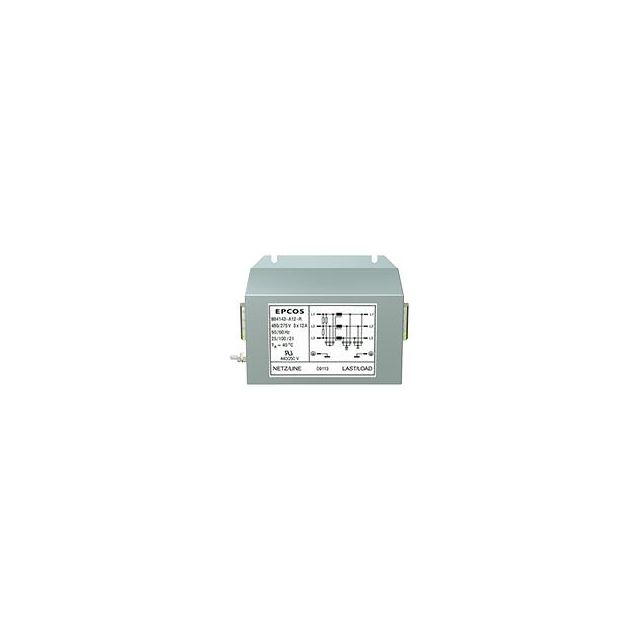

The B84143A0180R000 is a three-phase EMC/EMI line filter manufactured by EPCOS, part of TDK Electronics. Designed for industrial power applications, it supports a rated current of 180 A and operates at nominal voltages of 275 VAC (phase-to-ground) and 480 VAC (line-to-line). The unit functions within a frequency range of 50 to 60 Hz and utilizes terminal block connections with threaded posts for secure installation.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power lines
• Engineered for high-current industrial environments up to 180 A
• Features robust terminal block termination with threaded post mounting

Power Line Filter Modules Applications

• General-purpose industrial machinery requiring EMI filtering
• Three-phase AC power distribution systems
• Industrial drive and motor control installations

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating configuration required for your application, as datasheets indicate variants supporting different nominal voltages such as 275V or 480V. Confirm that the terminal block interface matches your wiring infrastructure. Ensure the 180 A current capacity aligns with your system's maximum load requirements before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this component when a dedicated three-phase solution is needed for currents around 180 A. It serves as an alternative to single-phase filters in delta configurations. Consider the physical dimensions and terminal type during layout planning. Ensure compatibility with the operating voltage range of 50-60 Hz networks.

Power Line Filter Modules Part Context

This component belongs to the EPCOS B84143 series of power line filters. The series includes various current ratings and housing options designed for global industrial standards. These filters are integral to maintaining power quality and compliance in heavy-duty electrical systems across manufacturing and automation sectors.

Power Line Filter Modules Replacement Considerations

Check for direct substitutes within the B84143 series with matching current ratings. Verify that any replacement maintains the same terminal block style and voltage specifications. Cross-reference pinouts and mounting hole patterns to ensure mechanical compatibility without redesigning the enclosure.
