B84143B0016R000

Power Line Filter Modules Overview

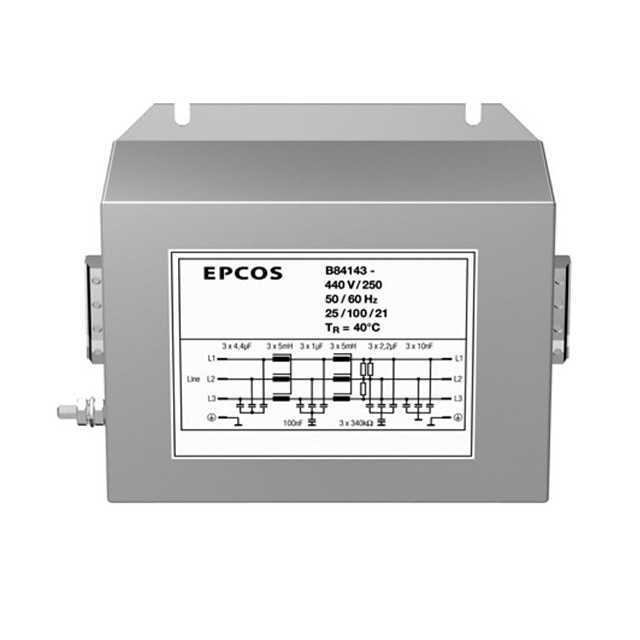

The B84143B0016R000 is a three-phase EMC/EMI line filter manufactured by EPCOS, now part of TDK Electronics. Designed for industrial applications, this component operates at frequencies between 50 and 60 Hz with a rated current of 16 A. It supports voltage ratings of 250 VAC and 440 VAC. The unit utilizes a chassis mount configuration to ensure stable installation in power systems. Its primary function is the suppression of electromagnetic interference within electrical circuits.

Power Line Filter Modules Feature Summary

• Engineered to suppress electromagnetic interference and protect sensitive equipment from power disturbances
• Designed specifically for use with inverters and three-phase power systems
• Constructed with a chassis mount housing for secure mechanical integration

Power Line Filter Modules Applications

• Inverter systems
• Three-phase power distribution networks
• Industrial machinery requiring EMI protection

Power Line Filter Modules Procurement Notes

Verify the obsolete status of this specific part number before initiating any procurement process. Confirm that the required specifications are met by available replacement models or updated series variants from the manufacturer. Ensure compatibility with existing chassis mounting infrastructure and electrical ratings during the sourcing phase.

Power Line Filter Modules Selection Notes

Select this component only when three-phase EMI filtering is required for inverters operating at 16 A. Verify that the chassis mount form factor aligns with the enclosure design. Consider the obsolete status when planning long-term production cycles, as supply availability may be limited compared to active series.

Power Line Filter Modules Part Context

This component belongs to the B84143 series of EMC filters produced by EPCOS, which was integrated into TDK Electronics. The series focuses on providing robust electromagnetic compatibility solutions for industrial power electronics. These filters are engineered to meet stringent regulatory standards for emissions control in demanding electrical environments.

Power Line Filter Modules Replacement Considerations

The B84143B0016R000 is listed as obsolete. Consult official TDK documentation for current equivalent models within the B84143 series or compatible three-phase filter alternatives that maintain identical current and voltage ratings.
