B84143B0025R000

Power Line Filter Modules Overview

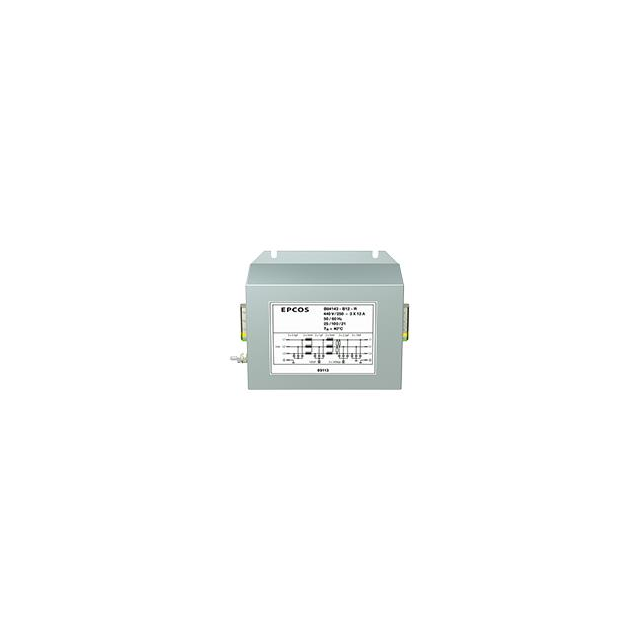

The B84143B0025R000 is a three-phase power line EMC filter manufactured by EPCOS (TDK Electronics). It features a chassis mount design with terminal block connections. The component is rated for a maximum current of 25A and operates at frequencies between 50Hz and 60Hz. It complies with UL 1283 standards and functions within an ambient temperature range of -25°C to +100°C.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase AC power lines
• Designed for secure chassis mounting applications
• Utilizes terminal block interface for electrical connectivity

Power Line Filter Modules Applications

• Industrial machinery power supply filtering
• Three-phase motor drive systems
• Factory automation equipment protection

Power Line Filter Modules Procurement Notes

Verify the specific suffix code against official TDK/EPCOS documentation to confirm exact electrical ratings and compliance certifications. Confirm that the chassis mounting dimensions and terminal block specifications match the target enclosure requirements before procurement.

Power Line Filter Modules Selection Notes

Select this component when a three-phase configuration is required for industrial environments. Ensure the operating voltage and current loads remain within the specified limits. Verify thermal management capabilities given the operational temperature range and potential heat dissipation during continuous use.

Power Line Filter Modules Part Context

This part belongs to the B84143 series of power line filters from EPCOS, a brand under TDK Electronics. The series is engineered for robust noise reduction in demanding industrial settings, offering reliable performance for sensitive electronic loads connected to three-phase networks.

Power Line Filter Modules Replacement Considerations

The datasheet indicates this specific part number is obsolete. Consult official manufacturer resources for confirmed substitute part numbers or updated series replacements that maintain equivalent electrical characteristics and form factors.
