B84143B0150R110

Power Line Filter Modules Overview

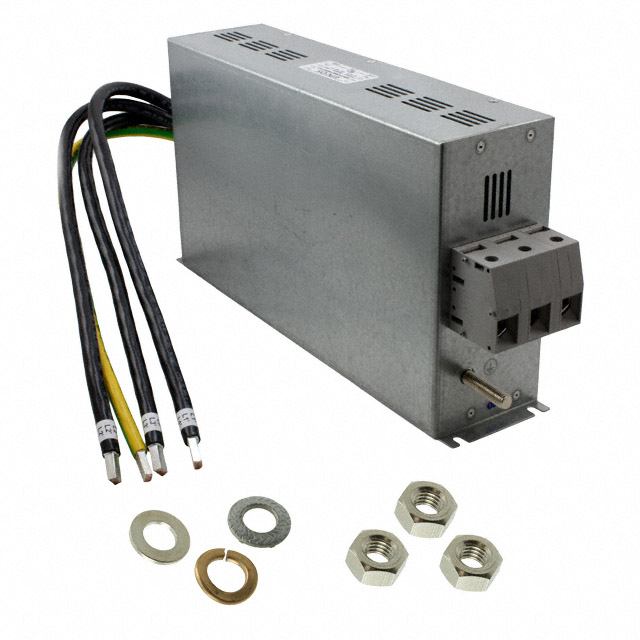

The B84143B0150R110 is a three-phase EMI filter manufactured by EPCOS (TDK). It features a metal package and panel mount installation. Rated voltage is 300 V AC at 50/60 Hz. Maximum rated current is 150 A. High potential withstand voltage is 2700 V. Maximum leakage current is 14 mA. Physical dimensions are L350.0 x B90.0 x H200.0 mm. Certifications include IEC, EN, and VDE standards.

Power Line Filter Modules Feature Summary

• Three-phase electromagnetic interference filtering for power electronics
• Metal housing construction with panel mounting capability
• Compliance with international safety and EMC certification standards

Power Line Filter Modules Applications

• Industrial power conversion systems
• Three-phase converter applications
• Power electronics equipment requiring EMI suppression

Power Line Filter Modules Procurement Notes

Verify the specific part number against official EPCOS documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with system voltage and current requirements. Check for valid certifications such as IEC, EN, and VDE. Confirm panel mounting specifications match enclosure design. Validate lead-free and RoHS compliance status through manufacturer datasheets before integration.

Power Line Filter Modules Selection Notes

Select this component for three-phase applications requiring high current handling up to 150 A. Consider the metal package size and panel mount style for mechanical integration. Evaluate leakage current limits relative to safety regulations. Verify operating frequency range matches the power supply source. Assess insulation requirements against the 2700 V high potential rating.

Power Line Filter Modules Part Context

This component belongs to the B84143 series of power line filters from EPCOS (TDK). The series includes various configurations for different phase counts and current ratings. These filters are designed for industrial environments where robust EMI suppression is necessary. The metal package provides durability and shielding effectiveness compared to plastic alternatives.

Power Line Filter Modules Replacement Considerations

Consult official TDK/EPCOS substitution guides for compatible alternatives within the B84143 family. Verify identical electrical parameters and mounting dimensions when selecting substitutes.
