B84143B0150S020

Power Line Filter Modules Overview

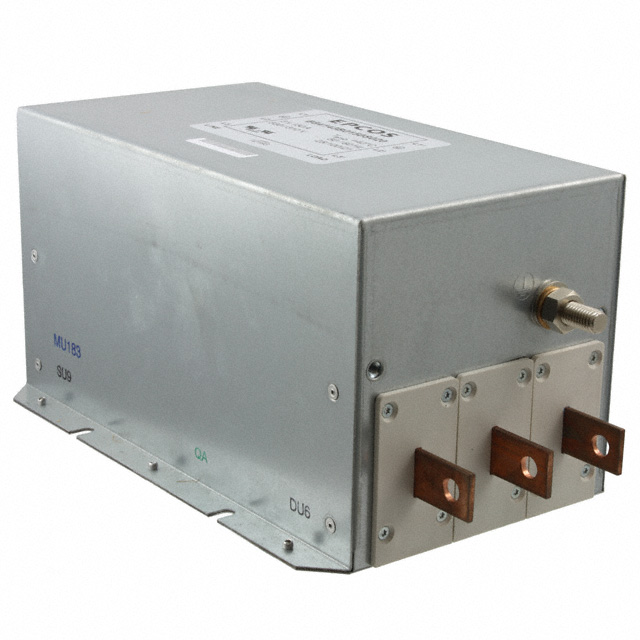

The B84143B0150S020 is a three-phase EMI filter manufactured by EPCOS (TDK). It is designed for use in converters and power electronics applications. The component features a metal package and supports panel mounting. Rated for a maximum voltage of 300V AC at 50/60Hz, it handles a rated current of 150A. Physical dimensions are approximately 350mm in length, 90mm in width, and 200mm in height. It complies with IEC, EN, and VDE standards.

Power Line Filter Modules Feature Summary

• Three-phase electromagnetic interference filtering capability
• Metal housing construction for durability
• Panel mount installation design

Power Line Filter Modules Applications

• Converters
• Power electronics systems

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'S020' against official TDK/EPCOS documentation to confirm exact electrical ratings and mechanical dimensions. Ensure compatibility with the intended low-voltage network environment and check for required certifications such as IEC, EN, or VDE before procurement.

Power Line Filter Modules Selection Notes

Select this component based on the requirement for a 150A three-phase filter in converter applications. Confirm that the 300V AC rating and physical dimensions fit the system constraints. Verify that the metal package and panel mount style align with the enclosure design requirements.

Power Line Filter Modules Part Context

This part belongs to the B84143 series of EMC filters from EPCOS (TDK), specifically designed for three-line applications in industrial power electronics. The series includes various current ratings and configurations tailored for different converter needs.

Power Line Filter Modules Replacement Considerations

Consult official TDK/EPCOS substitution guides for compatible parts within the B84143 series. Verify that any substitute matches the 150A current rating, three-phase configuration, and panel mount form factor.
