B84143B0180S080

Power Line Filter Modules Overview

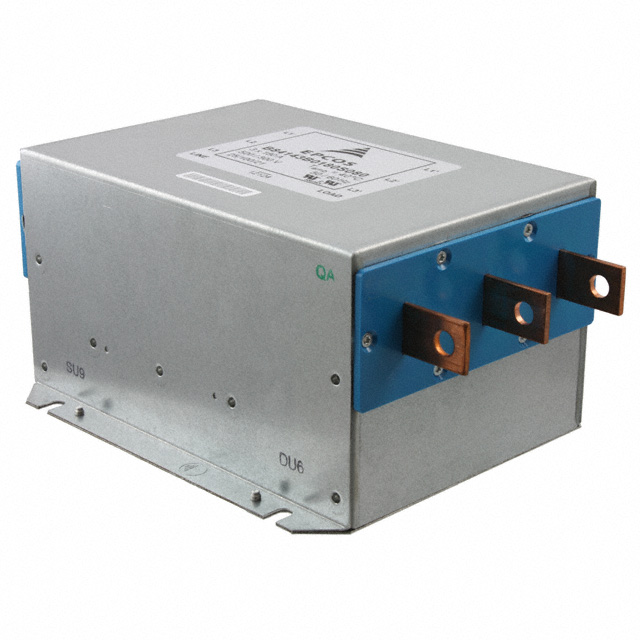

The B84143B0180S080 is a three-phase EMI/EMC power line filter manufactured by TDK (EPCOS). It features a rated current of 180 A and supports nominal AC voltages of 520 VAC and 300 VAC. Designed for chassis mounting with terminal block termination, the unit operates at frequencies of 50 Hz and 60 Hz. Key electrical specifications include a leakage current of 14 mA and a resistance value of 3.5 mΩ. The component complies with UL, CSA, and IEC/EN standards and functions within an operating temperature range of -25°C to +100°C.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power systems
• Integrates protection techniques to reduce electrical noise between power lines
• Engineered for high-current industrial applications requiring robust filtering

Power Line Filter Modules Applications

• Converter systems in industrial power electronics
• Three-phase motor drive installations
• Industrial machinery requiring EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific ordering code against official TDK documentation to ensure correct configuration. Confirm that the terminal post style matches the installation requirements. Check for updated compliance certifications such as UL and IEC before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select this model for applications requiring 180 A continuous current handling in three-phase configurations. Ensure the system voltage does not exceed the 520 VAC rating. Verify that chassis mounting space accommodates the physical dimensions and that terminal block connections are suitable for the wiring gauge.

Power Line Filter Modules Part Context

This component belongs to the B84143B series of three-line filters designed specifically for converters and power electronics. The series is part of TDK's broader portfolio of EMI solutions, focusing on high-performance filtering for demanding industrial environments where significant harmonic reduction is necessary.

Power Line Filter Modules Replacement Considerations

Consult official TDK substitution guides for verified alternatives. Cross-reference current ratings and voltage limits when considering equivalent models from other manufacturers to ensure compatibility.
