B84143B0250S080

Power Line Filter Modules Overview

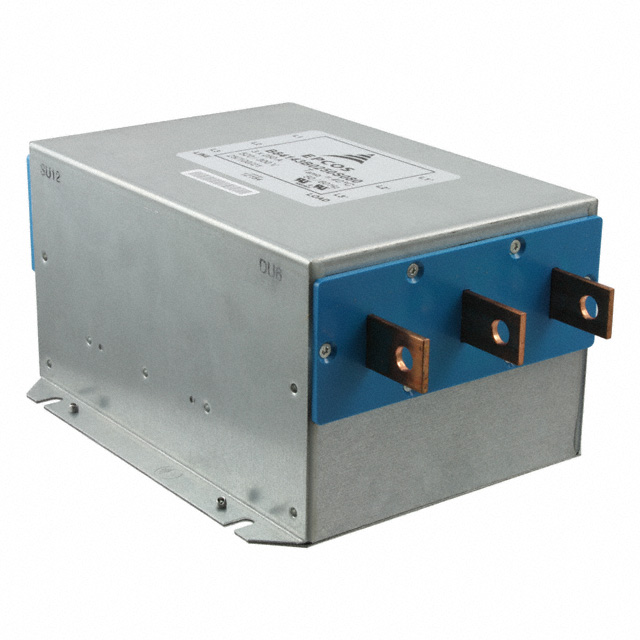

The B84143B0250S080 is a three-phase EMI/EMC power line filter manufactured by TDK Electronics. It features a rated current of 250 A and voltage ratings of 300 VAC and 520 VAC. Designed for chassis mounting with terminal block termination, the unit operates at frequencies of 50 Hz and 60 Hz. Key electrical specifications include a leakage current of 14 mA. The component weighs 6.775 kg and holds UL, CSA, and IEC/EN compliance certifications.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power systems
• Engineered for integration into converter and power electronics applications
• Constructed for secure chassis mounting using terminal block connections

Power Line Filter Modules Applications

• Regenerative frequency converter systems
• Industrial power electronics equipment
• Three-phase AC power distribution networks

Power Line Filter Modules Procurement Notes

Verify the specific ordering code against official TDK documentation to ensure correct configuration. Confirm that the terminal block interface matches the installation requirements. Check for any recent product change notifications regarding material or dimensional updates. Ensure the 250 A current rating aligns with the system design limits.

Power Line Filter Modules Selection Notes

Select this component when high-current three-phase filtering is required for industrial drives. The 250 A rating supports heavy-duty power electronics. Verify compatibility with 300 VAC and 520 VAC system voltages. Ensure the chassis mount form factor fits the available enclosure space. Confirm regulatory compliance needs are met by UL and IEC standards.

Power Line Filter Modules Part Context

This part belongs to the B84143B series of three-line filters designed for converters and power electronics. The series includes various current ratings and configurations. The S080 suffix indicates specific terminal and housing characteristics within the family. These filters address EMI emissions in accordance with international standards.

Power Line Filter Modules Replacement Considerations

Consult official substitution lists for equivalent current and voltage ratings. Verify mechanical dimensions and terminal types before swapping. Ensure regulatory approvals remain valid for the replacement part.
