B84143B0320S081

Power Line Filter Modules Overview

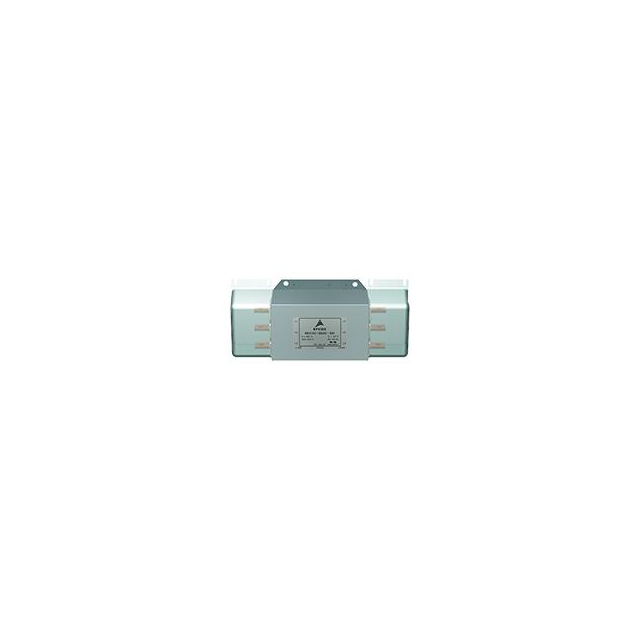

The B84143B0320S081 is a three-phase power line filter manufactured by EPCOS, part of the TDK Electronics portfolio. Designed for industrial applications, it supports a rated current of 320 A and operates at voltages up to 520 V AC. The unit features chassis mounting with busbar termination, ensuring robust integration into high-power systems. It functions effectively at standard frequencies of 50 Hz and 60 Hz. The component is engineered for durability within an operating temperature range spanning from -25°C to +85°C, providing reliable electromagnetic interference suppression for converters and power electronics.

Power Line Filter Modules Feature Summary

• Provides effective electromagnetic interference suppression for three-phase power lines
• Engineered for robust chassis mounting in industrial environments
• Supports high-current operation suitable for converter applications

Power Line Filter Modules Applications

• Industrial power conversion systems
• Three-phase motor drive installations
• Power electronics equipment requiring EMI filtering

Power Line Filter Modules Procurement Notes

Verify the specific ordering code against official TDK-Electronics documentation to ensure correct configuration. Confirm that the busbar termination style matches your system's mechanical interface requirements. Check for any recent product change notifications regarding material or dimensional updates before finalizing procurement specifications.

Power Line Filter Modules Selection Notes

Select this component when high continuous current handling is required for three-phase networks. Ensure the installation environment accommodates the specified thermal operating limits. Verify that the chassis mounting method aligns with available panel space and structural support capabilities for heavy-duty industrial filters.

Power Line Filter Modules Part Context

This model belongs to the B84143B series, which comprises three-line filters designed specifically for converters and power electronics. The series is characterized by high current ratings and durable construction suitable for demanding industrial settings. EPCOS, now integrated into TDK Electronics, produces these components to meet stringent electromagnetic compatibility standards for global markets.

Power Line Filter Modules Replacement Considerations

Consult official cross-reference lists for verified substitutes. Ensure any replacement maintains identical current ratings, voltage classes, and physical mounting dimensions to guarantee compatibility with existing infrastructure.
