B84143B0600S020

Power Line Filter Modules Overview

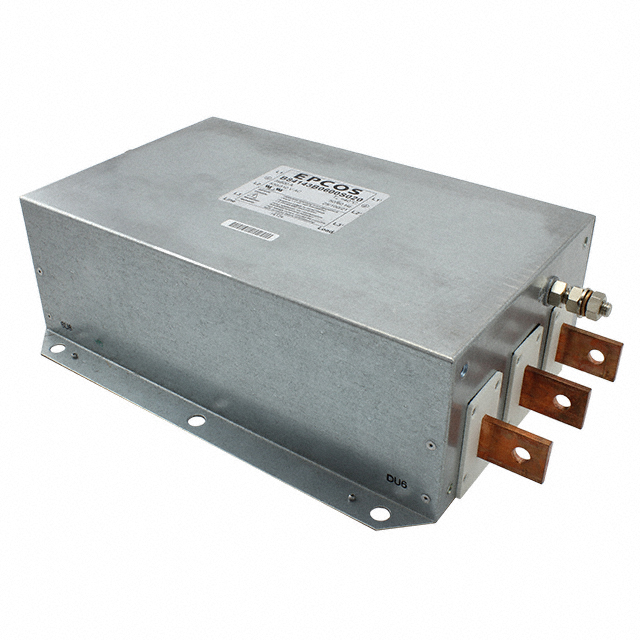

The B84143B0600S020 is a three-phase delta-connected EMC/EMI line filter manufactured by EPCOS, part of TDK Electronics. It is rated for a continuous current of 600 A and operates at AC voltages of 530 V and 310 V within the 50 to 60 Hz frequency range. The component features a two-stage filtering configuration and utilizes threaded M10 terminal posts for connection. Designed for chassis mounting, it serves as a robust solution for high-power industrial applications requiring significant electromagnetic interference suppression.

Power Line Filter Modules Feature Summary

• Provides two-stage attenuation for effective electromagnetic interference suppression in high-current environments
• Engineered specifically for three-phase delta-connected power systems
• Utilizes durable threaded M10 terminal posts for secure electrical connections

Power Line Filter Modules Applications

• Industrial inverters
• Power drive systems
• High-power converters

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirements against the datasheet, as the component supports both 530 V and 310 V AC configurations. Confirm that the installation environment accommodates the chassis mount style and that the available space meets the physical dimensions specified by the manufacturer. Ensure compatibility with the required M10 terminal post connections before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select this model when designing systems requiring 600 A capacity with delta phase configuration. It is suitable for applications needing robust EMI reduction in heavy-duty power electronics. Consider the thermal management capabilities and physical footprint constraints during the design phase to ensure proper integration into the target equipment enclosure.

Power Line Filter Modules Part Context

This component belongs to the B84143B series, which includes various high-current power line filters designed for industrial use. The series is characterized by its ability to handle substantial currents while maintaining effective noise filtration. These filters are integral to ensuring compliance with electromagnetic compatibility standards in demanding power electronic environments.

Power Line Filter Modules Replacement Considerations

The FMCC-I93D-U054 from Schurter Inc. is listed as an alternative substitute. Verify technical specifications and physical compatibility before implementation.
