B84143D0200R127

Power Line Filter Modules Overview

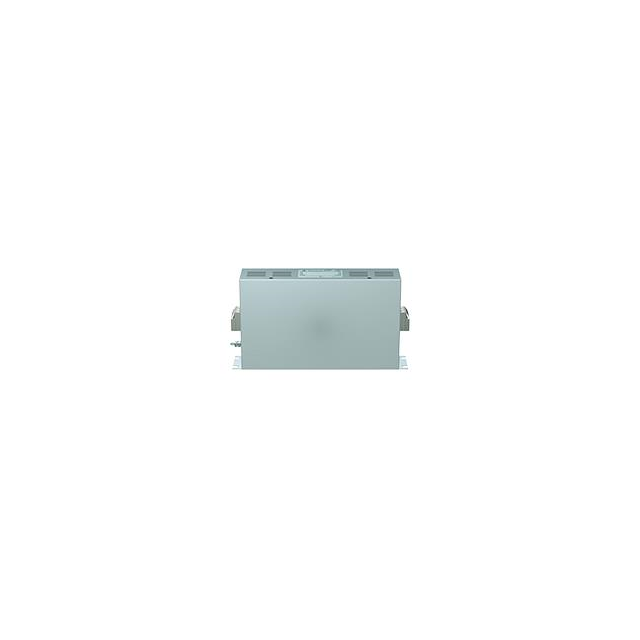

The B84143D0200R127 is a three-phase delta-connected EMC/EMI power line filter designed for converter and power electronics applications. It supports a rated current of 200 A AC at 50–60 Hz frequencies. The unit features a two-stage configuration with terminal block termination and chassis mounting. Operating temperature ranges from -25°C to 100°C. It holds CSA and UL certifications, ensuring compliance with safety standards for industrial drive and inverter systems.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mount design with terminal block termination for secure installation
• Certified insulation system compliant with UL and CSA safety standards

Power Line Filter Modules Applications

• Converter systems
• Power electronics assemblies
• Industrial drive and inverter applications

Power Line Filter Modules Procurement Notes

Verify the specific ordering suffix R127 to confirm the inclusion of the UL-certified insulation system and shielded cable support capabilities. Ensure the selected variant matches the required chassis mounting dimensions and terminal block interface specifications for your enclosure design. Cross-reference the datasheet for precise mechanical tolerances and electrical ratings before finalizing procurement orders.

Power Line Filter Modules Selection Notes

Select this component when high-current three-phase filtering is required for delta-connected systems. The 200 A rating suits heavy-duty industrial converters. Consider the chassis mount requirement and operating temperature range of -25°C to 100°C against environmental conditions. Verify that the two-stage topology meets the specific EMI attenuation needs of the application compared to single-stage alternatives.

Power Line Filter Modules Part Context

This component belongs to the B84143D series of sine-wave output filters by TDK Electronics (formerly EPCOS). These filters are engineered for motor drives and inverters, often supporting shielded motor cables. The brand transition from EPCOS to TDK Electronics maintains product lineage while updating corporate identity across global operations.

Power Line Filter Modules Replacement Considerations

Check the B84143DxR127 series documentation for alternative current ratings within the same family. Ensure substitute parts maintain the same chassis mount style and terminal block configuration to fit existing mechanical layouts without modification.
