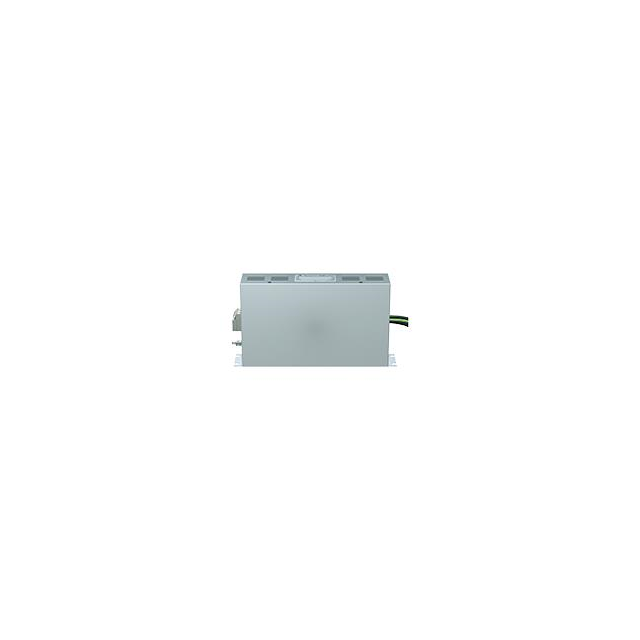

B84143G0025R110 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is LINE FILTER 25A CHASSIS MOUNT. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for B84143G0025R110
- Description：LINE FILTER 25A CHASSIS MOUNT
- Series：B84143G
- Mfr：EPCOS - TDK Electronics
- Package：Bulk
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：25 A
- Frequency - Operating：50 ~ 60Hz
- Applications：Converter
- Approval Agency：ENEC, UL
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block, Wire Leads
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for B84143G0025R110
Power Line Filter Modules Overview
The EPCOS B84143G0025R110 is a three-phase RFI power line filter designed for chassis mounting. It features a rated AC voltage of 500V and a DC voltage rating of 1000V. The component supports a maximum rated current of 25A with a working frequency range of 50 to 60Hz. Termination is achieved via terminal blocks. Physical dimensions are 91mm in length, 216mm in depth, and 156mm in height. The unit operates within a temperature range of -25°C to +100°C, exhibits a leakage current of 2.19 mA, and has a resistance value of 3.5mΩ.
Power Line Filter Modules Feature Summary
- Chassis mount construction for secure installation
- Terminal block termination style
- Compliant with UL 1283 standards
Power Line Filter Modules Applications
- Industrial equipment requiring RFI suppression
- Power distribution systems operating at 500V AC
- Applications necessitating chassis-mounted EMC filtering
Power Line Filter Modules Procurement Notes
Verify the specific suffix 'R110' against official TDK/EPCOS documentation to confirm housing type and certification status. Ensure the 500V AC rating aligns with system requirements. Confirm terminal block compatibility with existing wiring infrastructure before procurement.
Power Line Filter Modules Selection Notes
Select this model for applications requiring a 25A capacity with 500V AC rating. Consider the 91x216x156mm footprint for enclosure space planning. Verify that the terminal block interface matches the intended connection method. Ensure the -25°C to +100°C operating range suits the environmental conditions.
Power Line Filter Modules Part Context
This component belongs to the B84143 series of EPCOS power line filters. The series includes various configurations for different current ratings and voltage levels. These filters are engineered to suppress radio frequency interference in three-phase power systems, ensuring compliance with electromagnetic compatibility regulations.
Power Line Filter Modules Replacement Considerations
Consult official TDK/EPCOS substitution guides for verified alternatives. Cross-reference current ratings, voltage limits, and physical dimensions when evaluating potential replacements.
