B84143G0220R110

Power Line Filter Modules Overview

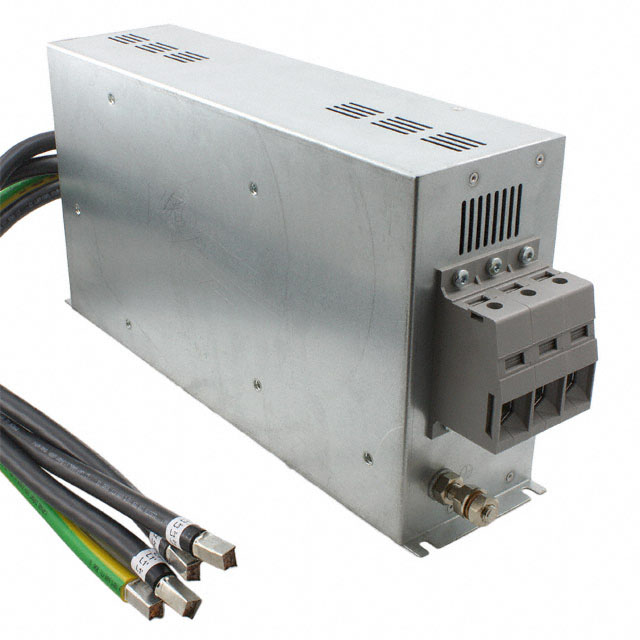

The B84143G0220R110 is a three-phase EMI filter manufactured by EPCOS (TDK Electronics). It operates at 50/60Hz with a rated current of 220 A and a rated voltage of 300 V AC. The unit features a metal package designed for panel mount installation. Key electrical specifications include a high potential of 2700 V and a maximum leakage current of 14 mA. Physical dimensions are 350 mm in length, 90 mm in width, and 200 mm in height. The component complies with IEC, EN, and VDE standards and is RoHS compliant.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power systems
• Constructed within a durable metal enclosure for robust industrial use
• Designed for secure panel mounting to ensure stable operation

Power Line Filter Modules Applications

• Power electronics converters
• Three-phase drive systems
• Industrial machinery requiring EMI filtering

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official EPCOS documentation to confirm exact ratings and certifications. Ensure compatibility with panel mounting requirements and thermal management needs. Confirm that the 220 A current rating and 300 V voltage specification align with the target application's electrical parameters before procurement.

Power Line Filter Modules Selection Notes

Select this component for applications requiring three-phase EMI filtration at 220 A. Consider the physical dimensions and panel mount style during system integration. Verify that the operating frequency range of 50/60Hz matches the power supply characteristics. Ensure the metal housing fits within the available enclosure space and meets environmental protection requirements.

Power Line Filter Modules Part Context

This component belongs to the B84143 series of EMC filters from EPCOS, a TDK Group Company. The series includes various configurations for different current and voltage ratings. The B84143G variant specifically denotes a three-phase filter design intended for general-purpose industrial applications where significant current handling and EMI suppression are required.

Power Line Filter Modules Replacement Considerations

Consult official EPCOS substitution guides for verified alternatives. Ensure any replacement maintains the same three-phase configuration, 220 A current rating, and 300 V voltage rating. Verify that physical dimensions and mounting styles are compatible with existing installations.
