B84143V0004R227

$246.13

Description：LINE FILTER 4A CHASSIS MOUNT
Series：B84143V
Mfr：EPCOS - TDK Electronics
Package：Bulk

SKU:9116c2908776 Category: Power Line Filter Modules Brand: EPCOS - TDK Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

B84143V0004R227 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is LINE FILTER 4A CHASSIS MOUNT. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for B84143V0004R227

Description：LINE FILTER 4A CHASSIS MOUNT
Series：B84143V
Mfr：EPCOS - TDK Electronics
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：4:00 AM
Frequency - Operating：50 ~ 60Hz
Applications：Converter
Approval Agency：cURus
Operating Temperature：-
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：12mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：520 V

Power Line Filter Modules datasheet and documents for B84143V0004R227

B84143V0004R227

Power Line Filter Modules Overview

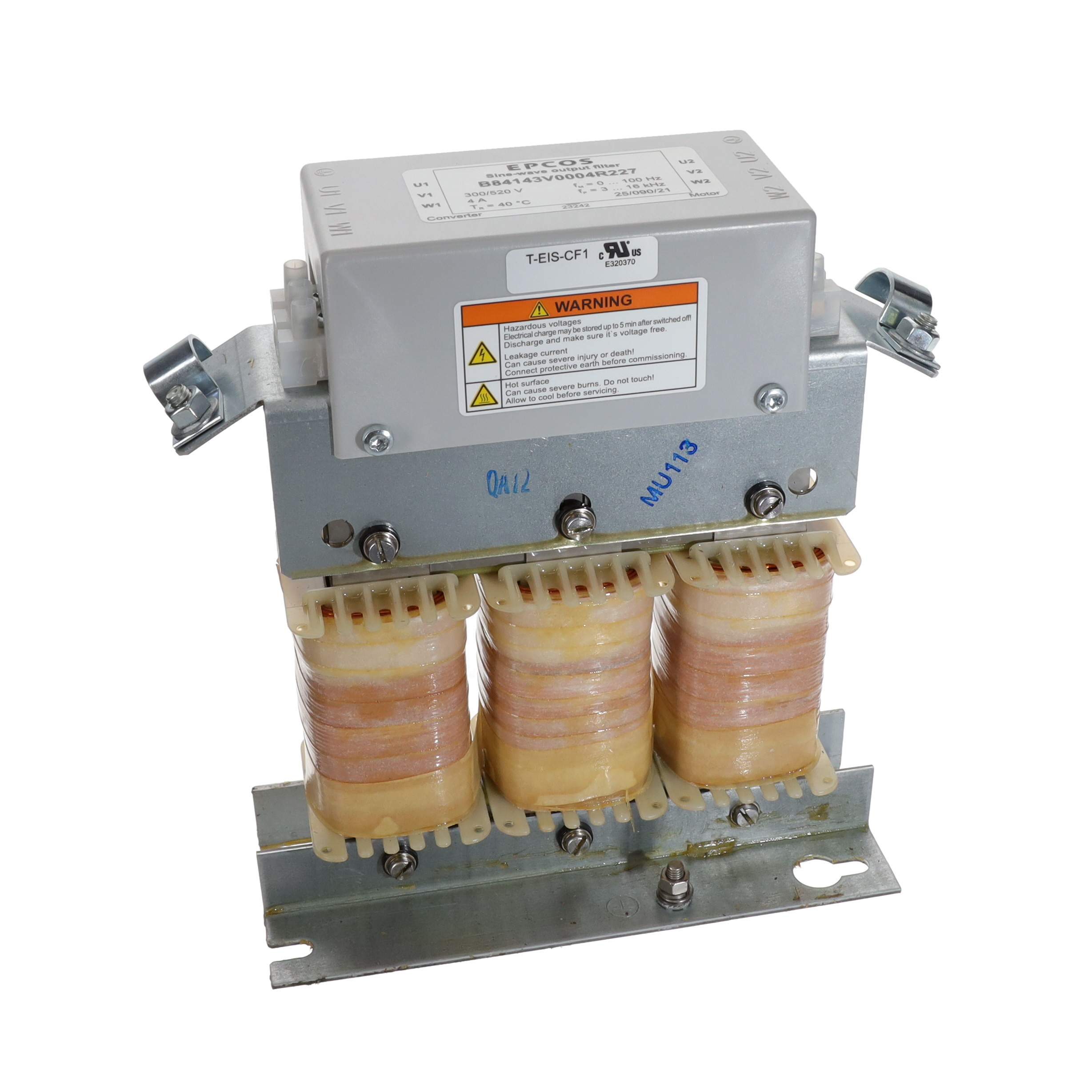

The B84143V0004R227 is a three-phase sine-wave output filter manufactured by EPCOS (TDK Electronics). It is designed for chassis mounting with terminal block termination. The component operates at a minimum frequency of 50 Hz and features an inductance of 12 mH. Rated for 4 A current, it supports a maximum voltage of 520 V AC.

Power Line Filter Modules Feature Summary

Provides sine-wave output filtering for drive systems
Features UL-certified insulation system
Supports shielded motor cable applications

Power Line Filter Modules Applications

Drive and inverter systems
Regenerative converter systems
Equipment requiring IEC/TS 62578 compliance

Power Line Filter Modules Procurement Notes

Verify the specific suffix against official TDK/EPCOS documentation to confirm exact electrical ratings and housing configurations. Ensure compatibility with the target drive system's voltage and current requirements before procurement.

Power Line Filter Modules Selection Notes

Select this model for applications requiring certified sine-wave filtration. Confirm that the 4A rating and 520V AC limit align with the system's operational parameters. Verify chassis mounting dimensions and terminal block specifications for integration.

Power Line Filter Modules Part Context

This component belongs to the B84143V series of power line filters from EPCOS. These filters are engineered for industrial electronics, specifically targeting noise reduction in variable frequency drives and inverters to ensure signal integrity.

Power Line Filter Modules Replacement Considerations

Consult official TDK substitution guides for verified alternatives. Generic cross-references may not match the specific UL certification or shielding requirements of the original design.
