B84143V0006R027 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is LINE FILTER 440V/250VAC. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for B84143V0006R027
- Description：LINE FILTER 440V/250VAC
- Series：-
- Mfr：EPCOS - TDK Electronics
- Package：Box
- Filter Type：-
- Configuration：-
- Voltage - Rated DC：-
- Voltage - Rated AC：440V, 250V
- Current：-
- Frequency - Operating：-
- Applications：-
- Approval Agency：-
- Operating Temperature：-
- Mounting Type：-
- Termination Style：-
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for B84143V0006R027
Power Line Filter Modules Overview

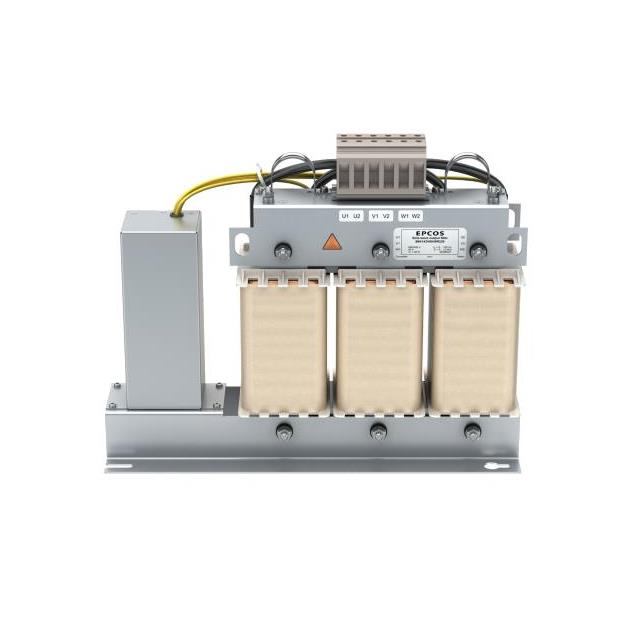

The B84143V0006R027 is a three-phase AC power line filter manufactured by EPCOS (TDK Electronics). It belongs to the Sineformer series, designed specifically for sine-wave output filtering in drive and inverter applications. The component features a rated current of 6 A and supports voltage ratings of 250 VAC and 440 VAC. It utilizes a terminal block termination style and is constructed with an UL-certified insulation system. This filter is engineered to support shielded motor cables within industrial automation systems.
Power Line Filter Modules Feature Summary
- Provides sine-wave output filtering for drive and inverter applications
- Features UL-certified insulation system for safety compliance
- Designed to support distribution of shielded motor cables
Power Line Filter Modules Applications
- Sine-wave output filtering for industrial drives
- Inverter application EMC suppression
- Shielded motor cable distribution systems
Power Line Filter Modules Procurement Notes
Verify the specific suffix R027 against official TDK documentation to confirm housing type and certification status. Confirm that the obsolete product status does not impact long-term supply requirements. Ensure the 6A rating aligns with the specific load requirements of the target drive system before procurement.
Power Line Filter Modules Selection Notes
Select this component when sine-wave output filtering is required rather than standard dV/dt protection. Verify compatibility with the 250 VAC or 440 VAC operating voltages. Ensure the installation environment accommodates the screw mounting style and terminal block connections specified for this series.
Power Line Filter Modules Part Context
This component is part of the B84143V series from EPCOS, which focuses on output filters for motor drives. Unlike line reactors or dV/dt chokes, this series is optimized for shaping output waveforms. It shares the family characteristic of using UL-certified insulation systems suitable for industrial environments.
Power Line Filter Modules Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult official TDK replacement guides for cross-referencing obsolete components.
