B84143V0006R229

Power Line Filter Modules Overview

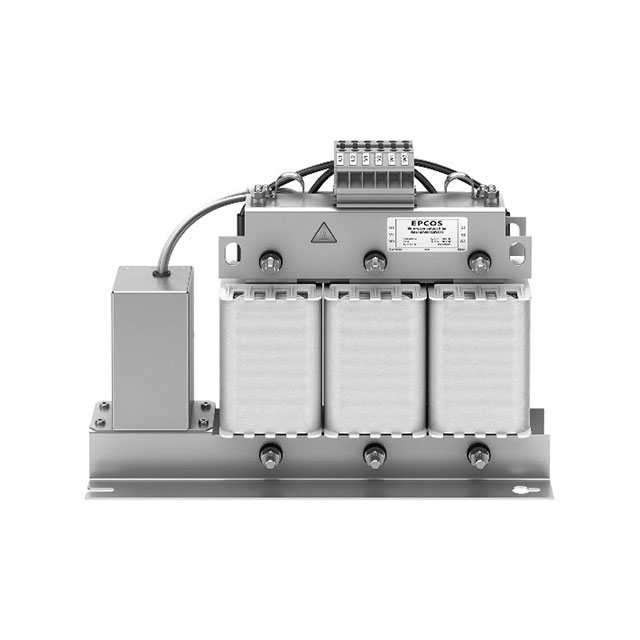

The B84143V0006R229 is a three-phase sine-wave output filter module manufactured by EPCOS (TDK). It is designed for use with drive and inverter applications to shape inverter output waveforms. The unit features a rated current of 6 A and operates at a voltage of 520 V. It supports frequencies of 50/60 Hz and utilizes a terminal block connection style. The component is part of the B84143V series, which includes UL-certified insulation systems.

Power Line Filter Modules Feature Summary

• Provides sine-wave output filtering for inverter drives
• Features UL-certified insulation system
• Supports shielded motor cable distribution

Power Line Filter Modules Applications

• Drive and inverter applications
• Power electronics converters
• Motor control systems requiring waveform shaping

Power Line Filter Modules Procurement Notes

Verify the specific ordering code against official TDK documentation to ensure correct configuration. Confirm that the housing requirements align with the B84143Q series if an enclosure is needed. Check for RoHS compliance status in the latest datasheet before integration.

Power Line Filter Modules Selection Notes

Select this model when a 6 A rating and 520 V operation are required for three-phase sine-wave filtering. Ensure compatibility with the associated B84143Q housing if panel mounting or protection is necessary. Verify terminal block interface suitability for the target circuit connections.

Power Line Filter Modules Part Context

This component belongs to the B84143V series of sine-wave filters from EPCOS (TDK). These filters are engineered to convert PWM inverter outputs into sinusoidal waveforms suitable for standard motors. The series is distinct from the B84143B RFI filters and the B84143Q housing accessories.

Power Line Filter Modules Replacement Considerations

Consult official TDK substitution guides for equivalent current ratings. No direct public substitute part numbers are confirmed in the provided data.
