B84143V0011R227

Power Line Filter Modules Overview

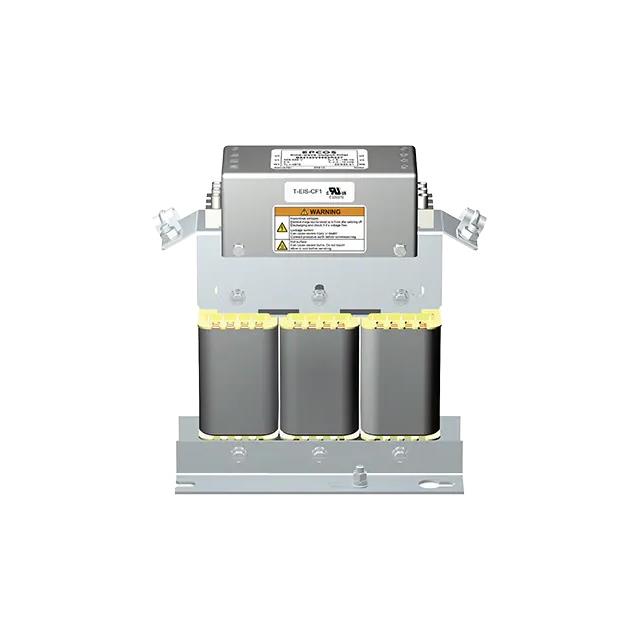

The B84143V0011R227 is a three-phase sine-wave output filter manufactured by EPCOS, now part of TDK Electronics. Designed for drive and inverter applications, this component supports an rated current of 11A and operates at a maximum voltage of 520V AC. It features chassis mounting with terminal block connections and complies with UL 1283 standards. The filter is engineered to support shielded motor cables, ensuring effective electromagnetic interference suppression in industrial power systems.

Power Line Filter Modules Feature Summary

• Provides sine-wave output filtering for drive and inverter systems
• Supports distribution shielding for motor cables
• Features UL certified insulation system

Power Line Filter Modules Applications

• Drive and inverter applications
• Regenerative frequency converter systems
• Industrial power supply filtering

Power Line Filter Modules Procurement Notes

Verify the specific suffix R227 against official datasheets to confirm housing type and connection details. Ensure compatibility with 520V AC systems and 11A load requirements. Confirm chassis mounting dimensions and terminal block specifications match the installation environment. Cross-reference with TDK Electronics documentation for accurate technical parameters.

Power Line Filter Modules Selection Notes

Select this model for applications requiring sine-wave output filtering in three-phase systems. Consider the 11A current rating and 520V AC voltage limit. Verify the need for UL certification and shielded cable support. Compare physical dimensions and terminal types with existing infrastructure requirements.

Power Line Filter Modules Part Context

This component belongs to the B84143V series of sine-former filters from EPCOS/TDK. These filters are designed for use with drives and inverters, offering EMC compliance and protection for motor cables. The series includes various current ratings and configurations to suit different industrial power electronics needs.

Power Line Filter Modules Replacement Considerations

Check for other models within the B84143V series with similar current ratings (e.g., 10A or 12A variants) if exact specifications differ. Consult TDK Electronics for direct substitutes that maintain UL certification and sine-wave output characteristics.
