B84143V0026R230

Power Line Filter Modules Overview

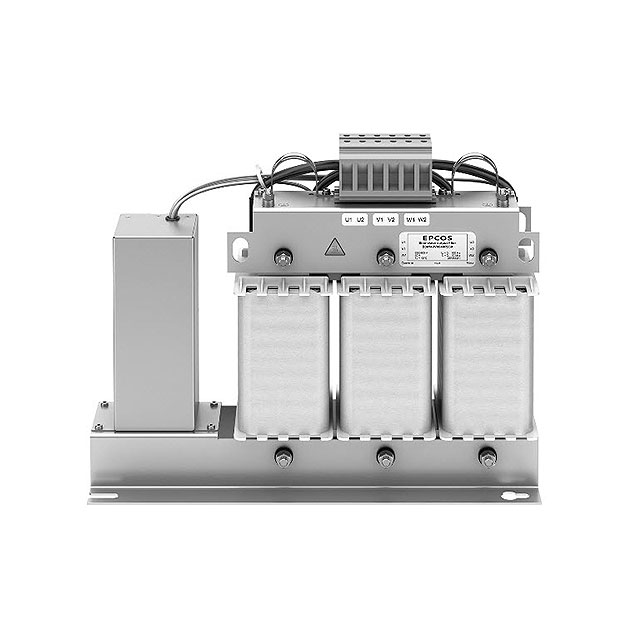

The B84143V0026R230 is a three-phase EMC line filter manufactured by EPCOS, part of the TDK Electronics portfolio. Designed for industrial applications, it supports a maximum current of 26 A and operates at AC voltages up to 690 V within 50 Hz or 60 Hz frequency ranges. The unit features terminal block termination and wall-mount installation. Its physical dimensions are 380 mm in length, 285 mm in height, and 141 mm in depth. It functions reliably within an operating temperature range of -25°C to +85°C and complies with RoHS standards.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power systems
• Utilizes terminal block connections for secure electrical interfacing
• Engineered for robust wall-mount installation in industrial environments

Power Line Filter Modules Applications

• Industrial machinery requiring EMC compliance
• Three-phase power distribution systems
• Inverter and drive system input stages

Power Line Filter Modules Procurement Notes

Verify that the specific suffix R230 matches the required mounting configuration and terminal type for your application. Confirm that the 26 A current rating and 690 V voltage limit align with your system's peak operational demands. Ensure the wall-mount mechanical constraints fit the designated enclosure space. Cross-reference the RoHS certification status if environmental regulations apply to your deployment region.

Power Line Filter Modules Selection Notes

Select this component when a three-phase solution is required for currents up to 26 A at 690 V AC. The wall-mount design suits panels where chassis mounting is not feasible. Verify that the terminal block interface matches existing wiring harnesses. Consider the physical footprint of 380x285x141 mm during layout planning. Ensure ambient temperatures remain within the specified -25°C to +85°C operational window for reliable performance.

Power Line Filter Modules Part Context

This filter belongs to the B84143V series, which includes sine-wave output filters and line filters designed for drive and inverter applications. The series addresses electromagnetic compatibility requirements in industrial electronics. EPCOS, now integrated into TDK Electronics, produces these components to ensure stable power supply and protect electronic circuits from interference in demanding industrial settings.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers for B84143V0026R230 were not identified in the provided documentation. Users should consult official TDK Electronics catalogs for direct equivalents or verify compatibility with alternative series such as B84143B or B84143D based on specific electrical and mechanical requirements.
