B84143V0033R127

Power Line Filter Modules Overview

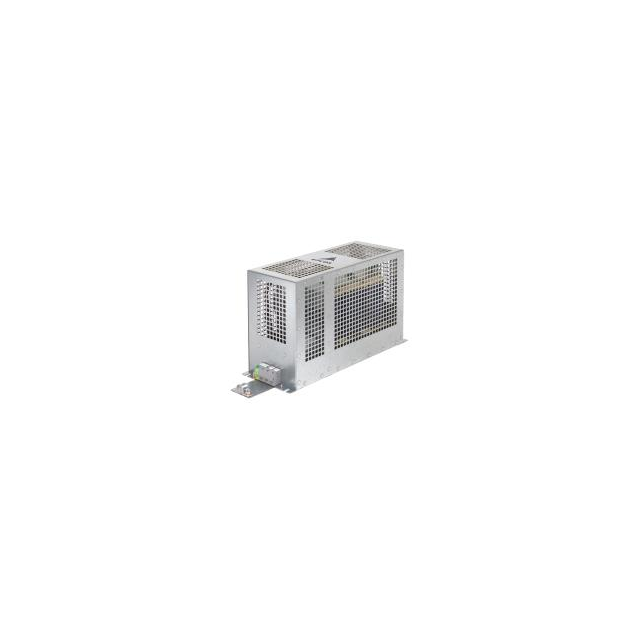

The B84143V0033R127 is a three-phase EMC sine-wave filter manufactured by EPCOS (TDK Electronics). It is designed for inverter applications to convert PWM output into a sinusoidal waveform. The component supports a rated current of 33A and operates with voltages of 300/520V AC at 50-60Hz. It features an IP21 housing and UL certification, ensuring safety and compliance for industrial drive systems.

Power Line Filter Modules Feature Summary

• Converts inverter pulse-width modulation output into a pure sine wave
• IP21 protective housing for environmental protection
• UL certified insulation system for safety compliance

Power Line Filter Modules Applications

• Industrial motor drives and inverters
• Pump and fan control systems
• Conveyor belt automation

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating variant against the application requirements, as the B84143V series includes different voltage types such as 300/520V or 440/760V. Confirm that the 33A current rating matches the load specifications. Ensure the IP21 housing type is suitable for the installation environment. Cross-reference the full part number to avoid confusion with similar sine-former models.

Power Line Filter Modules Selection Notes

Select this filter when the goal is to protect motors from dv/dt stress and reduce bearing currents caused by variable frequency drives. The sine-wave output allows the use of standard induction motors without special insulation. Consider the physical dimensions and mounting style to ensure compatibility with the existing enclosure layout and thermal management strategy.

Power Line Filter Modules Part Context

This component belongs to the SineFormer series (B84143V*R127), which is specifically engineered for drive and inverter applications. The series provides output filters with UL-certified insulation systems. It is part of TDK Epcos's broader range of reactors and filters designed to improve power quality and equipment longevity in industrial settings.

Power Line Filter Modules Replacement Considerations

Check for direct substitutes within the B84143V series with matching current ratings. Verify if alternative sine-wave filters from other manufacturers meet the same UL certification and IP21 housing standards. Ensure electrical parameters like leakage current and impedance are compatible with the specific motor and drive combination.
