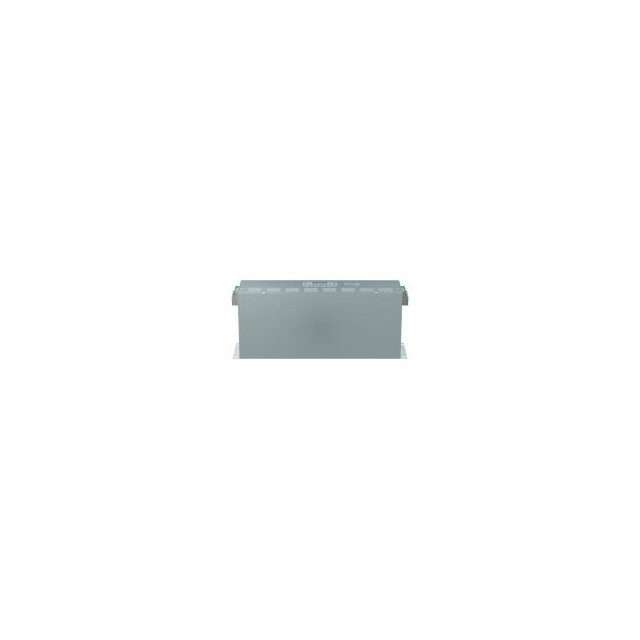

B84143V0035R027 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is LINE FILTER 440V/250VAC. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for B84143V0035R027
- Description：LINE FILTER 440V/250VAC
- Series：-
- Mfr：EPCOS - TDK Electronics
- Package：Box
- Filter Type：-
- Configuration：-
- Voltage - Rated DC：-
- Voltage - Rated AC：440V, 250V
- Current：-
- Frequency - Operating：-
- Applications：-
- Approval Agency：-
- Operating Temperature：-
- Mounting Type：-
- Termination Style：-
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for B84143V0035R027
Power Line Filter Modules Overview
The B84143V0035R027 is a three-phase AC power line filter manufactured by EPCOS, part of the TDK Electronics portfolio. Designed for industrial electromagnetic compatibility (EMC) applications, this component provides RFI suppression for three-wire systems. It features a rated current of 35 A and supports voltage ratings of 440 VAC and 250 VAC. The unit utilizes a screw mounting style with terminal block termination for secure installation. This filter is engineered to attenuate radio frequency interference in power lines, ensuring compliance with EMC standards in demanding electrical environments.
Power Line Filter Modules Feature Summary
- Provides effective attenuation of radio frequency interference (RFI) on three-phase AC power lines
- Engineered for robust performance in industrial electromagnetic compatibility (EMC) applications
- Features secure terminal block termination compatible with standard screw mounting methods
Power Line Filter Modules Applications
- Industrial machinery power supply filtering
- Three-phase motor drive input stages
- Factory automation control panels
Power Line Filter Modules Procurement Notes
Verify the specific suffix code against official manufacturer documentation to confirm exact electrical characteristics and physical dimensions. Confirm RoHS compliance status through the latest datasheet revision. Ensure the terminal block configuration matches the intended circuit board or busbar interface requirements before procurement.
Power Line Filter Modules Selection Notes
Select this component based on the requirement for a 35 A current rating in a three-phase configuration. Verify that the 440 VAC/250 VAC voltage ratings align with the system's nominal operating voltages. Consider the terminal block termination style when designing the mechanical enclosure and wiring layout for the application.
Power Line Filter Modules Part Context
This component belongs to the B84143 series of AC power line filters from EPCOS. The series offers various current ratings and housing options for different EMC requirements. As an EPCOS product now under TDK Electronics, it represents a standardized solution for industrial noise suppression in power distribution networks.
Power Line Filter Modules Replacement Considerations
Consult official cross-reference lists for verified substitutes. Ensure any replacement maintains identical phase count, current rating, and voltage specifications.
