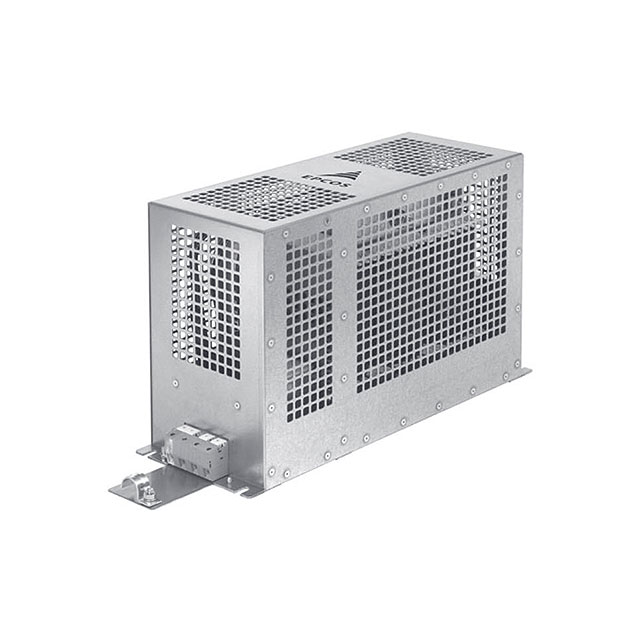

B84143V0045R127 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is LINE FILTER 520VAC 45A CHASS MNT. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for B84143V0045R127
- Description：LINE FILTER 520VAC 45A CHASS MNT
- Series：B84143V
- Mfr：EPCOS - TDK Electronics
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：45 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block, Wire Leads
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for B84143V0045R127
Power Line Filter Modules Overview
The B84143V0045R127 is a three-phase power line filter from the EPCOS Sineformer series, designed for sine-wave output filtering in drive and inverter applications. It features an IP21 housing and supports shielded motor cables via distribution shielding. The component operates at 50/60 Hz with rated voltages of 300 VAC and 520 VAC. It has a maximum rated current of 45 A and utilizes busbar connections for chassis mounting. Compliance includes UL certification for the insulation system.
Power Line Filter Modules Feature Summary
- Provides sine-wave output filtering for drive and inverter systems
- Features IP21 protective housing for environmental protection
- Supports distribution shielding for shielded motor cables
- Includes UL-certified insulation system
Power Line Filter Modules Applications
- Sine-wave output filtering for AC drives
- Inverter application EMC suppression
- Industrial motor drive systems
Power Line Filter Modules Procurement Notes
Verify the specific ordering suffix to confirm the exact voltage rating (e.g., R127) and connection type. Ensure the selected variant matches the required IP rating and shielding support for the target application. Cross-reference the manufacturer part number against official TDK/EPCOS documentation to confirm current production status and compliance certifications before procurement.
Power Line Filter Modules Selection Notes
Select this filter based on the requirement for sine-wave output filtering rather than standard EMI suppression. Verify that the 45 A current rating and 300/520 VAC voltage ratings align with the drive specifications. Confirm the need for IP21 housing and busbar termination style during mechanical integration planning.
Power Line Filter Modules Part Context
This component belongs to the B84143V* series of EPCOS reactors and output filters. This series specifically targets drive and inverter applications, distinguishing itself from standard RFI filters by providing sine-wave output capabilities. The product line includes various configurations for different current and voltage requirements within industrial automation contexts.
Power Line Filter Modules Replacement Considerations
Consult official TDK/EPCOS substitution guides for verified alternatives. Generic cross-references are not recommended due to specific sine-wave filtering characteristics.
