B84143V0066R127

Power Line Filter Modules Overview

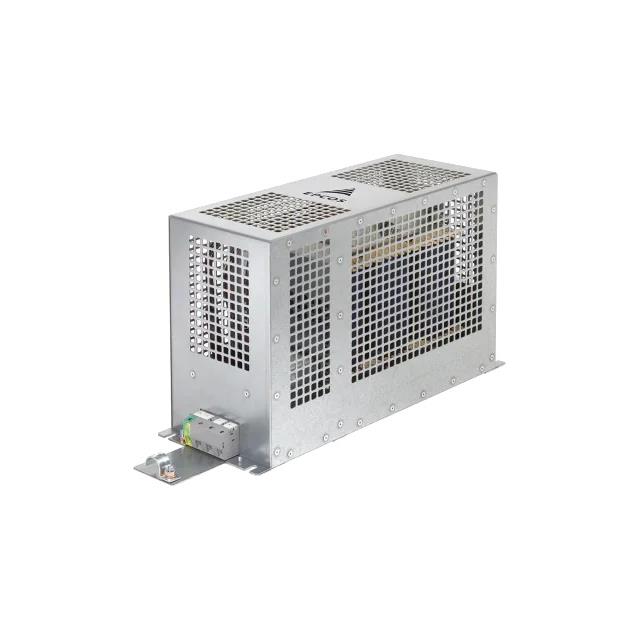

The B84143V0066R127 is a three-phase (delta) EMC sine-wave output filter manufactured by TDK Electronics. Designed for converter applications, it operates at 50 to 60 Hz with a rated current of 66 A and a voltage rating of 300/520 V AC. The unit features a two-stage configuration and chassis mounting via terminal posts. It includes UL certification and supports shielded motor cables.

Power Line Filter Modules Feature Summary

• Provides sine-wave output filtering for converters
• Supports distribution of shielded motor cables
• Features UL certified insulation system

Power Line Filter Modules Applications

• Converter systems
• Inverter applications
• Drive systems requiring EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific suffix R127 against official TDK documentation to confirm the inclusion of the UL-certified insulation system and shielded cable support capabilities. Ensure the delta configuration matches the load requirements. Cross-reference the 66A rating with thermal constraints in the final datasheet before procurement.

Power Line Filter Modules Selection Notes

Select this component when a two-stage sine-wave filter is required for three-phase delta-connected loads. Confirm that the 66A continuous current and 520V AC rating align with the drive output specifications. Verify compatibility with shielded cabling infrastructure if noise reduction is critical.

Power Line Filter Modules Part Context

This part belongs to the B84143V series of power line filters from EPCOS/TDK. These components are engineered for industrial drive and inverter environments. The series distinguishes itself through integrated shielding support and robust chassis-mount designs suitable for high-power electromagnetic interference suppression.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
