B84143V0075R227

Power Line Filter Modules Overview

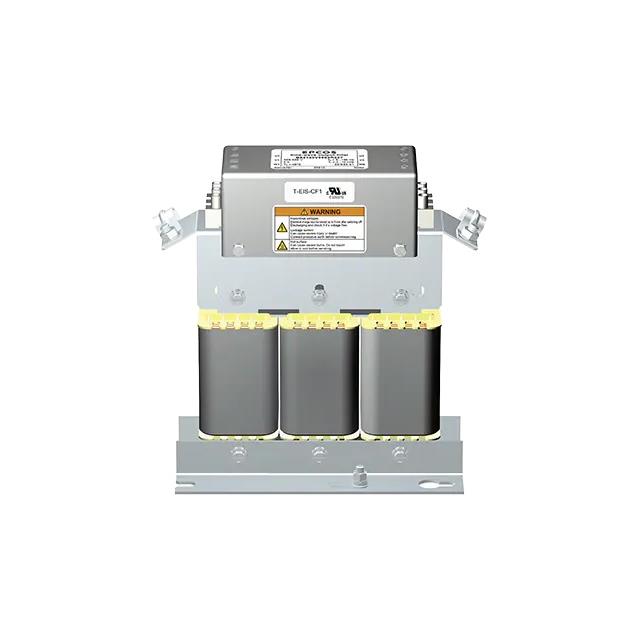

The B84143V0075R227 is a three-phase sine-wave output filter manufactured by TDK (EPCOS). It is rated for 75 A current and 520 V AC voltage. The unit features chassis mount installation with terminal block termination. It operates at 50 Hz or 60 Hz frequencies. The component carries UL certification for its insulation system.

Power Line Filter Modules Feature Summary

• Provides sine-wave output filtering for drive applications
• Includes UL certified insulation system
• Supports shielded motor cable distribution

Power Line Filter Modules Applications

• Drive and inverter systems
• Sine-wave output filtering
• Applications requiring shielded motor cables

Power Line Filter Modules Procurement Notes

Verify the specific ordering suffix to confirm the exact electrical ratings and housing configuration. Confirm that the terminal block type matches the required connection method. Ensure the chassis mount dimensions fit the intended enclosure space. Check for any recent product change notifications regarding material or dimensional updates.

Power Line Filter Modules Selection Notes

Select this component when a three-phase sine-wave output filter is required for inverter systems. Ensure the application voltage does not exceed 520 V AC. Verify that the load current remains within the 75 A rating. Consider the chassis mounting requirement and terminal block interface during mechanical design.

Power Line Filter Modules Part Context

This part belongs to the B84143V series of output filters from EPCOS, now part of TDK Electronics. These filters are designed for use with variable frequency drives to shape the output waveform. The series includes various current ratings and voltage options to suit different industrial drive requirements.

Power Line Filter Modules Replacement Considerations

Check for updated 15-digit standardized ordering codes from TDK. Verify compatibility with existing LCL filter designs if used in regenerative systems.
