B84143V0180R127

Power Line Filter Modules Overview

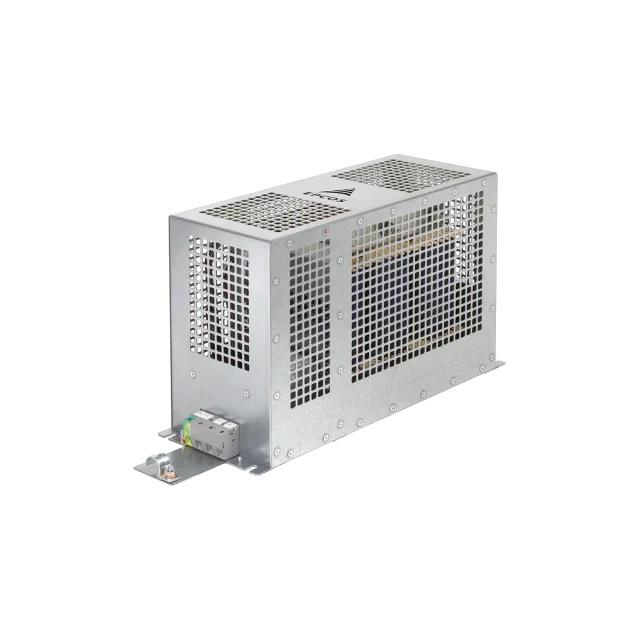

The B84143V0180R127 is a three-phase sine-wave EMC output filter from the SineFormer series, rated for 180A and 520V AC. Designed for inverter applications, it supports shielded motor cables via distribution shielding. The unit features UL 1283 certification and operates within a temperature range of -25°C to +100°C. It utilizes a two-stage delta configuration to ensure signal integrity.

Power Line Filter Modules Feature Summary

• Provides sine-wave output filtering for inverter-driven systems
• Supports distribution shielding for motor cables
• Features UL 1283 certified insulation system

Power Line Filter Modules Applications

• Inverter drive systems
• Motor control applications requiring sine-wave output
• Industrial equipment with shielded cable requirements

Power Line Filter Modules Procurement Notes

Verify the specific suffix R127 confirms the distribution shielding capability for motor cables. Ensure the 180A current rating matches the load requirements. Confirm UL 1283 compliance is required for the target installation region. Check physical dimensions against available mounting space.

Power Line Filter Modules Selection Notes

Select this model when sine-wave output is mandatory rather than standard PWM. The 180A rating suits high-power drives. The R127 variant specifically addresses cable shielding distribution needs. Verify voltage compatibility with the 520V AC system.

Power Line Filter Modules Part Context

Part of the B84143V*SineFormer* family designed for drive and inverter applications. This series includes line reactors, dv/dt chokes, and output filters. The V-series specifically denotes sine-wave output filters with UL-certified insulation systems for industrial environments.

Power Line Filter Modules Replacement Considerations

Check for B84143V*R127 variants with different current ratings if load conditions change. Verify mechanical compatibility with existing chassis mounts.
