B84144A0016R120

Power Line Filter Modules Overview

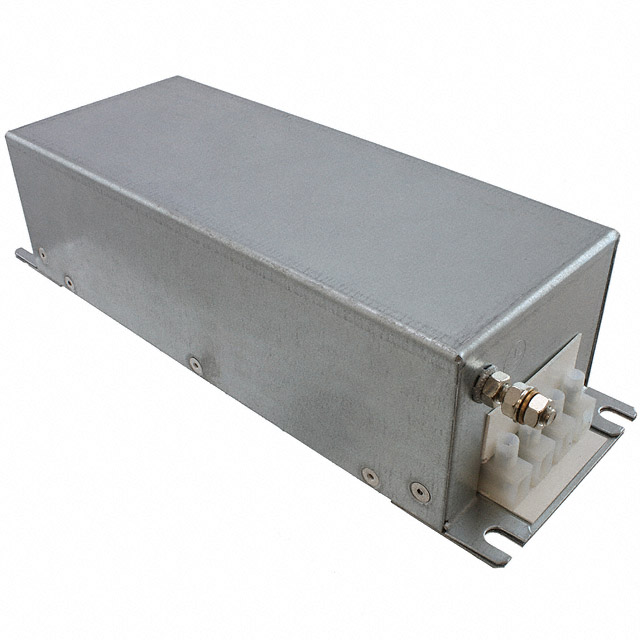

The B84144A0016R120 is a single-stage, three-phase power line EMC filter manufactured by TDK Electronics (formerly EPCOS). Designed for chassis mounting, this component features block terminals and supports a rated current of 16A with voltage ratings up to 520VAC. It operates within a temperature range of -25°C to +100°C. The unit is RoHS compliant and classified as a four-line filter configuration intended for converters and power electronics applications.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture designed for effective electromagnetic interference suppression in power circuits.
• Robust chassis mount construction utilizing terminal block interfaces for secure electrical connections.
• Operational capability across a wide industrial temperature range from -25°C to +100°C.

Power Line Filter Modules Applications

• Medical equipment power supplies
• Industrial converter systems
• Power electronics units

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm compliance with current safety standards and regulatory requirements. Ensure that the chassis mounting dimensions and terminal block specifications match the target enclosure design. Cross-reference the part number against official TDK Electronics catalogs to validate availability and technical parameters before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is sufficient for the required attenuation levels in three-phase applications. Consider the 16A current rating and 520VAC voltage limit to ensure compatibility with the system's electrical loads. Evaluate the chassis mount form factor against available space constraints and verify that the operating temperature range aligns with the environmental conditions of the installation site.

Power Line Filter Modules Part Context

This component belongs to the B84144A series of four-line filters developed for converters and power electronics. The series is characterized by its compact design and high performance in suppressing conducted emissions. As part of TDK Electronics' portfolio, these filters are engineered to meet stringent EMC requirements for industrial and medical applications, providing reliable noise reduction in demanding environments.

Power Line Filter Modules Replacement Considerations

Consult official TDK Electronics substitution guides or contact technical support for verified alternative part numbers. Do not assume cross-compatibility with other manufacturers' components without rigorous testing and validation against the original specifications.
