B84144A0016R140

Power Line Filter Modules Overview

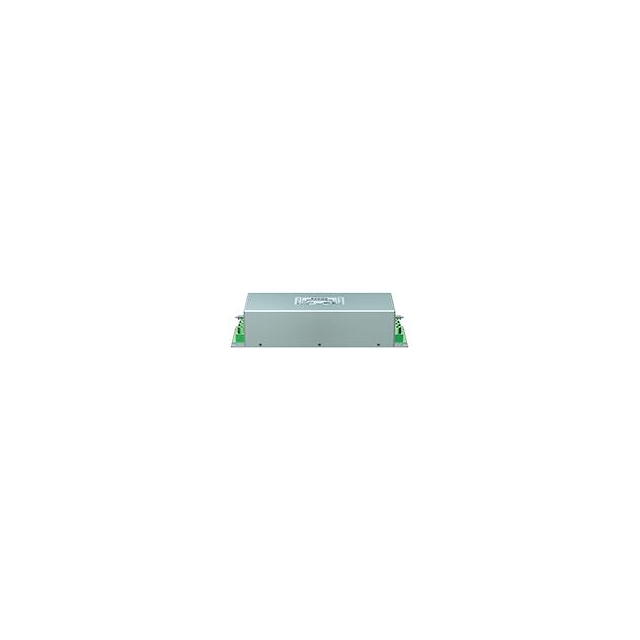

The B84144A0016R140 is a 4-line EMC filter manufactured by TDK Electronics, designed for use in converters and power electronics. It features a rated current of 16 A and utilizes block terminals for connection. The component operates reliably within a temperature range of -25°C to 100°C.

Power Line Filter Modules Feature Summary

• Designed as a 4-line filter for converter and power electronics applications
• Utilizes block terminal connections for secure installation
• Operates reliably across a wide temperature range from -25°C to 100°C

Power Line Filter Modules Applications

• Frequency converters for motor drives
• Elevator systems
• Pump control systems
• Traction systems
• Conveyor systems

Power Line Filter Modules Procurement Notes

Verify the specific suffix R140 against official TDK-EPC documentation to confirm terminal type and housing configuration. Ensure the selected variant matches the required 16 A rated current and 4-line topology for your specific converter application. Cross-reference datasheet revisions to guarantee compatibility with existing design parameters.

Power Line Filter Modules Selection Notes

Select this component when designing power electronics requiring 4-line filtering for motor drive frequency converters. Confirm that the 16 A rated current meets system load requirements. Verify that the operating temperature range of -25°C to 100°C aligns with the environmental conditions of the intended industrial or traction application.

Power Line Filter Modules Part Context

This component belongs to the B84144 series of 4-line filters for converters and power electronics produced by TDK Electronics. The brand EPCOS was integrated into TDK Electronics AG in 2018, maintaining its product lineage under the TDK umbrella for industrial and automotive electronic components.

Power Line Filter Modules Replacement Considerations

Consult official TDK-EPC substitution guides for verified alternatives. Do not assume cross-compatibility with other filter series without verifying electrical ratings and physical dimensions.
