B84144A0036R120

Power Line Filter Modules Overview

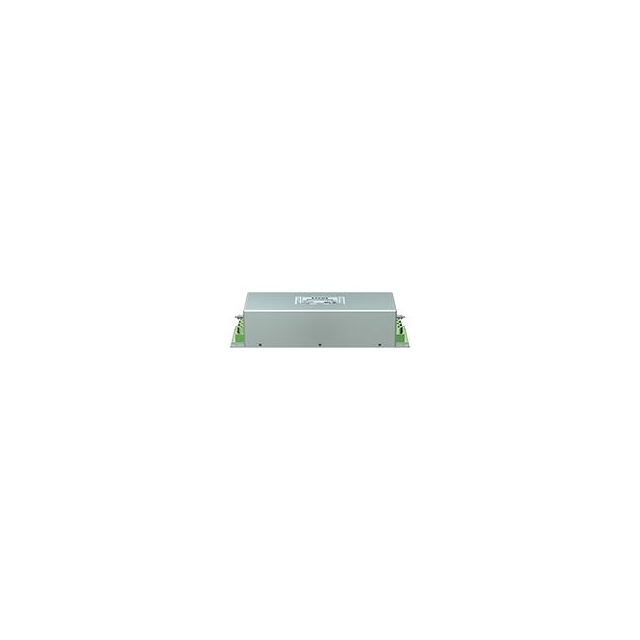

The B84144A0036R120 is a three-phase (Wye) EMC/EMI line filter module designed for single-stage noise suppression in power electronics. It supports a rated current of 36 A at 50–60 Hz and utilizes block terminal connections for secure wiring. The unit features chassis mounting and operates within a temperature range of -25 to 100°C, ensuring reliability in industrial environments.

Power Line Filter Modules Feature Summary

• Provides effective electromagnetic interference suppression for three-phase systems
• Utilizes block terminals for robust electrical connectivity
• Engineered for chassis mounting to facilitate integration into control panels

Power Line Filter Modules Applications

• Frequency converters for motor drives
• Elevator drive systems
• Industrial pump controls
• Traction systems
• Conveyor system power supplies

Power Line Filter Modules Procurement Notes

Verify the specific suffix R120 against official TDK documentation to confirm terminal configuration and mechanical dimensions. Ensure the application voltage aligns with standard industrial ratings. Confirm RoHS compliance status through the manufacturer's latest declaration before procurement.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is sufficient for EMI reduction in 36 A three-phase circuits. Evaluate space constraints for chassis mounting and verify that block terminals match existing wiring harnesses. Consider thermal management requirements given the operating temperature limits.

Power Line Filter Modules Part Context

This part belongs to the B84144A series of four-line filters developed by TDK Electronics (formerly EPCOS). These modules are specifically engineered for use in converters and power electronics applications, offering standardized performance for industrial motor drives and similar heavy-duty equipment.

Power Line Filter Modules Replacement Considerations

Consult TDK datasheets for direct substitutes within the B84144A family with matching current ratings. Verify compatibility with existing mounting hardware and terminal types before substituting.
