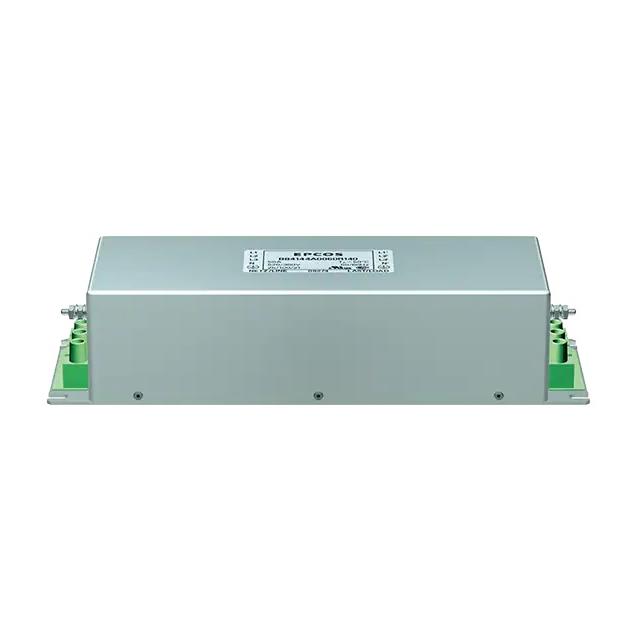

B84144A0050R140 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is LINE FILTER 50A CHASSIS MOUNT. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for B84144A0050R140
- Description：LINE FILTER 50A CHASSIS MOUNT
- Series：B84144
- Mfr：EPCOS - TDK Electronics
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：50 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cUR, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：520 V
- Voltage - Rated AC (Phase to Phase)：300 V
Power Line Filter Modules datasheet and documents for B84144A0050R140
Power Line Filter Modules Overview
The EPCOS B84144A0050R140 is a three-phase EMC power line filter designed for industrial applications. It features a rated AC voltage of 520 V and supports a maximum current rating of 50 A. The device operates within a temperature range of -25°C to +100°C and utilizes terminal block termination with flange mounting. It complies with UL 1283 standards, ensuring reliable performance in demanding environments.
Power Line Filter Modules Feature Summary
- Designed for effective electromagnetic interference suppression in three-phase systems
- Robust construction suitable for wide temperature operational ranges
- Utilizes terminal block connections for secure electrical interfacing
Power Line Filter Modules Applications
- Frequency converters for motor drives
- Elevator control systems
- Industrial pump drives
- Traction systems
- Conveyor system power supplies
Power Line Filter Modules Procurement Notes
Verify the specific suffix R140 against official TDK-EPC documentation to confirm exact filtering characteristics and compliance certifications. Ensure the 520 VAC rating aligns with the target system's phase-to-ground or neutral voltage requirements. Confirm that the terminal block termination style matches existing panel wiring infrastructure before procurement.
Power Line Filter Modules Selection Notes
Select this component when high current capacity up to 50 A is required for three-phase converter applications. The 520 VAC rating distinguishes it from standard 440 VAC filters. Consider the operating temperature range of -25°C to +100°C for environmental suitability. Verify physical dimensions and flange mounting compatibility with the intended enclosure design.
Power Line Filter Modules Part Context
This component belongs to the B84144A series of four-line filters for converters and power electronics manufactured by TDK Electronics (formerly EPCOS). The series is engineered for compact integration into industrial power electronics, providing essential noise attenuation for sensitive control circuits while handling significant load currents.
Power Line Filter Modules Replacement Considerations
Consult official TDK-EPC substitution guides for verified equivalents. Generic cross-references may not match the specific 520 VAC rating or terminal configuration.
