B84144A0200R120

Power Line Filter Modules Overview

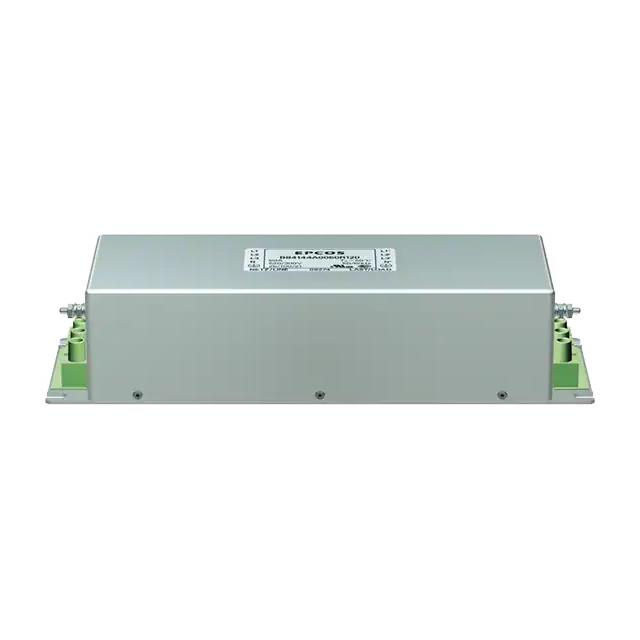

The B84144A0200R120 is a four-line power line EMC filter manufactured by TDK (EPCOS). It features a chassis mount configuration with block terminals. The unit supports a rated current of 200A and operates within a voltage range of 300/520 VAC at frequencies of 50 to 60Hz. The device functions effectively across an operating temperature range from -25°C to +100°C.

Power Line Filter Modules Feature Summary

• Four-line filtering architecture for comprehensive electromagnetic interference suppression
• Chassis mount design utilizing block terminal connections
• High current handling capability suitable for industrial power applications

Power Line Filter Modules Applications

• Industrial power distribution systems requiring EMI reduction
• Three-phase equipment interfacing with four-wire networks
• Heavy machinery control panels needing robust noise filtration

Power Line Filter Modules Procurement Notes

Verify the specific ordering code against official TDK documentation to ensure compatibility with your system requirements. Confirm that the chassis mounting dimensions and terminal block specifications match your enclosure design. Check for any recent datasheet updates regarding compliance standards or environmental certifications before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select this component when high-current filtering is required for four-line configurations. Ensure the installation environment allows for chassis mounting and provides adequate thermal management within the specified temperature limits. Verify that the input voltage levels align with the 300/520 VAC rating to prevent operational failure.

Power Line Filter Modules Part Context

This component belongs to the B84144 series of power line EMC filters from TDK Electronics. The series offers various current ratings and configurations designed for industrial and commercial applications. The B84144A variant specifically addresses four-line filtering needs, distinguishing it from standard three-phase models in the broader product family.

Power Line Filter Modules Replacement Considerations

Consult official TDK cross-reference lists for verified substitutes. Ensure any replacement maintains the same four-line topology, 200A current rating, and chassis mount form factor to guarantee electrical and mechanical compatibility.
