B84144B0600S121

Power Line Filter Modules Overview

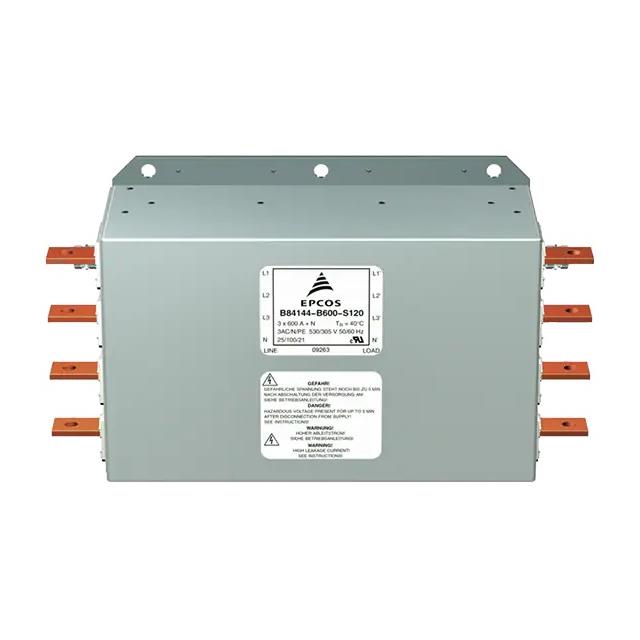

The B84144B0600S121 is a three-phase star-connected EMC/EMI line filter designed for chassis mounting. It supports a rated AC voltage of 305 V (line-to-line) and 530 V (line-to-neutral) at 50–60 Hz frequencies. The unit handles a rated current of 600 A at 40 °C, with a peak withstand current capability. Operating within a temperature range of -25 °C to +100 °C, it features a three-stage configuration and terminal post termination. Certified by cURus, this component is intended for use in converter applications.

Power Line Filter Modules Feature Summary

• Three-stage filtering configuration for enhanced electromagnetic interference suppression
• Robust chassis mount design with terminal post connections
• High current handling capacity suitable for industrial power systems

Power Line Filter Modules Applications

• Industrial converters
• AC power input modules
• Heavy machinery drive systems

Power Line Filter Modules Procurement Notes

Verify the specific suffix S121 against the original equipment manufacturer's bill of materials to ensure compatibility with existing certification listings and mechanical interfaces. Confirm that the 600 A rating aligns with the system's continuous load requirements and that the chassis mounting provisions match the installation enclosure specifications before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this component when high-current three-phase filtering is required for chassis-mounted installations. Ensure the application environment stays within the specified -25 °C to +100 °C operating range. Verify that the 305 V AC line-to-line rating meets the network voltage requirements and that the terminal post termination style is compatible with the available busbar or cable infrastructure.

Power Line Filter Modules Part Context

This part belongs to the B84144 series of EMC filters from TDK Electronics. The series provides robust solutions for industrial power electronics, focusing on noise reduction in high-current environments. The B84144B0600S121 variant specifically addresses the needs of large-scale converters requiring significant current capacity and strict emission control standards.

Power Line Filter Modules Replacement Considerations

The B84144B0600S120 is documented as a parameter-equivalent substitute. Verify electrical ratings and physical dimensions before swapping.
