B84233A1500R000

Power Line Filter Modules Overview

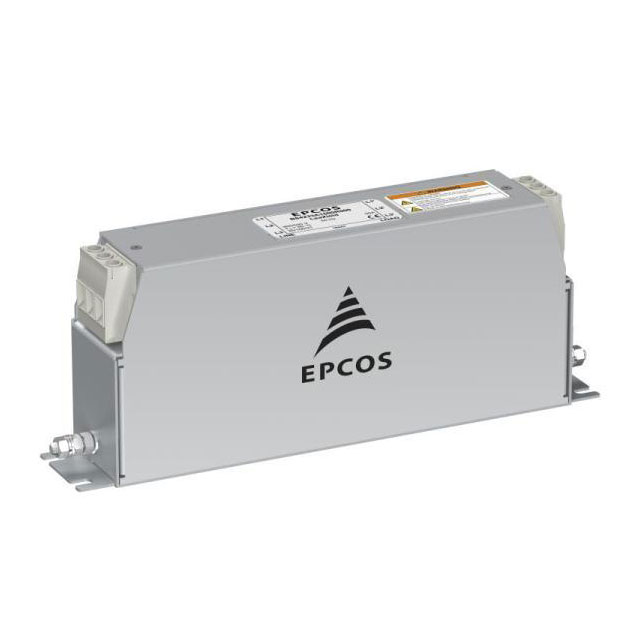

The B84233A1500R000 is a three-phase (Delta) EMC line filter module from the EPCOS LeaXield series, manufactured by TDK Electronics. It features a rated current of 50 A and voltage ratings of 530 V AC and 305 V AC. The component operates within a temperature range of -25°C to +100°C. Designed as an active filter, it significantly reduces earth leakage currents in variable-speed drive systems, ensuring stable operation even in sensitive environments requiring low residual current thresholds.

Power Line Filter Modules Feature Summary

• Active filtering technology designed to significantly reduce earth leakage currents produced in variable-speed drive systems
• Compact module construction suitable for integration into industrial drive applications
• Optimized performance for maintaining stability in environments with strict residual current device requirements

Power Line Filter Modules Applications

• Variable-speed drive systems
• Industrial motor drives
• Inverter applications

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version and technical documentation provided by TDK Electronics or authorized distributors to confirm electrical characteristics and mechanical dimensions. Ensure compatibility with existing drive system parameters before procurement. Cross-reference the part number with official manufacturer catalogs to validate authenticity and current production status.

Power Line Filter Modules Selection Notes

Select this component for applications requiring significant reduction of earth leakage currents in three-phase Delta configurations. Consider the 50 A current rating and 530 V AC voltage specification when matching drive system requirements. Evaluate the operating temperature range and compact form factor against spatial constraints in the installation environment.

Power Line Filter Modules Part Context

This component belongs to the EPCOS LeaXield series of active filters developed by TDK Electronics. The series focuses on minimizing parasitic currents in modern power electronics. As part of the broader EPCOS portfolio acquired by TDK, these filters address electromagnetic compatibility challenges in high-performance industrial automation and drive technologies.

Power Line Filter Modules Replacement Considerations

Consult official TDK Electronics substitution guides for verified alternative part numbers. Do not assume functional equivalence with generic three-phase filters without verifying leakage current specifications and voltage ratings against the original design requirements.

Power Line Filter Modules FAQ

What is the primary function of the B84233A1500R000?

It is an active filter designed to significantly reduce earth leakage currents generated in variable-speed drive systems.

What are the voltage ratings for this filter?

The component has voltage ratings of 530 V AC and 305 V AC.
