B84243A6083Z000

Power Line Filter Modules Overview

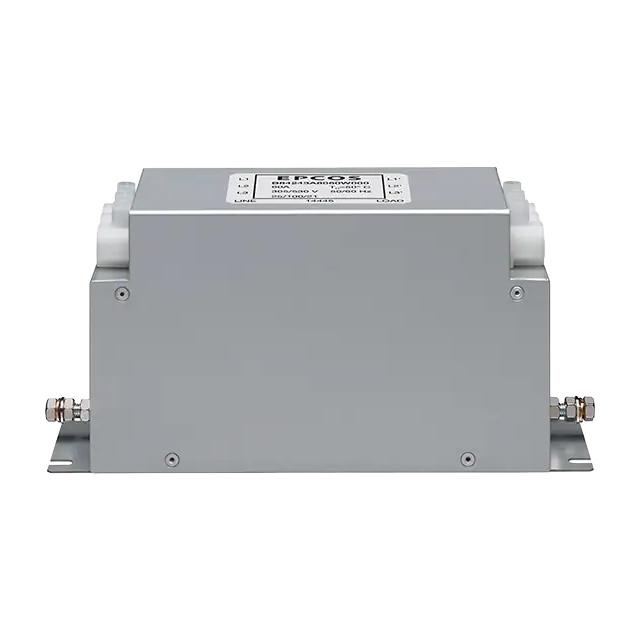

The B84243A6083Z000 is a three-phase EMC line filter from the EPCOS (TDK) B84243A series, designed for industrial power electronics. It features a rated current of 83 A and an AC voltage rating of 530 V. The unit provides a DC withstand voltage of 1700 V between lines for 2 seconds. Optimized for EN 61800-3:2004+A1:2011 compliance, it supports motor cable lengths up to 50 meters (Category C2). The filter utilizes a metal housing with IP20 protection and employs high saturation impedance to control parasitic asymmetric currents.

Power Line Filter Modules Feature Summary

• Optimized performance for EN 61800-3:2004+A1:2011 standards with support for extended motor cable lengths
• High saturation impedance ensures reliable control of parasitic asymmetric currents even with long cables
• Low leakage current design enables stable operation in environments protected by 30 mA residual current devices

Power Line Filter Modules Applications

• Drive inverters for elevator systems
• Pump drive applications
• Conveyor system drives
• HVAC system drive inverters

Power Line Filter Modules Procurement Notes

Verify the specific suffix Z000 against the manufacturer's official ordering code database to confirm exact configuration details. Ensure compatibility with the target system's voltage and current requirements before integration. Cross-reference the latest product change notifications for any manufacturing updates that may affect physical dimensions or electrical characteristics.

Power Line Filter Modules Selection Notes

Select this component when designing systems requiring compliance with EN 61800-3 Class C2 limits for motor cables up to 50 meters. It is suitable for applications needing robust suppression of asymmetric currents without excessive leakage current. Consider the physical dimensions and IP20 rating for enclosure planning. Verify that the 83 A current rating aligns with the drive's maximum output capabilities.

Power Line Filter Modules Part Context

This component belongs to the B84243A*000 series of compact, high-performance three-phase EMC filters. The series includes variants with rated currents up to 280 A, all sharing a 530 V AC rating. These filters are engineered for converters and power electronics, offering metal housings in two primary size formats depending on the specific current rating selected within the family.

Power Line Filter Modules Replacement Considerations

Consult the official TDK-Electronics replacement guide for direct substitutes. Ensure any alternative maintains the same 83 A rating, 530 V AC specification, and EN 61800-3 C2 compliance. Verify mechanical fitment and terminal configurations match the existing installation requirements.
