B84243A8012W000

Power Line Filter Modules Overview

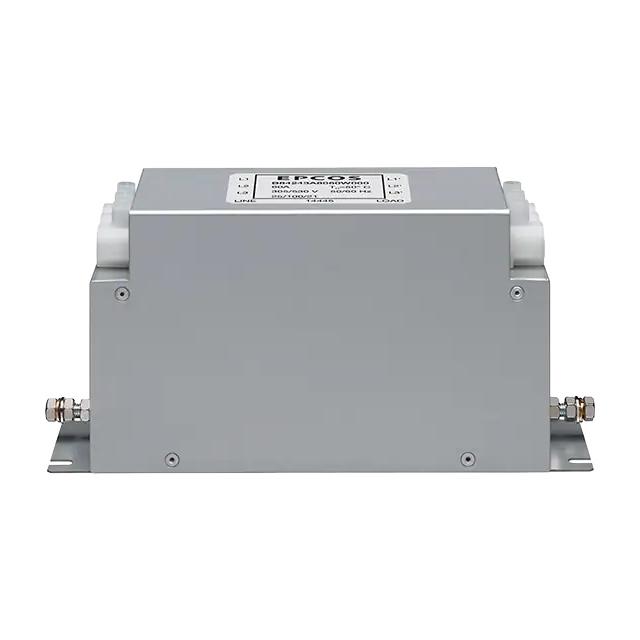

The B84243A8012W000 is a three-phase EMC line filter from the TDK B84243 series, designed for inverter drive applications. It features a rated AC voltage of 530V and 305VAC with a continuous current rating of 12A at 50/60Hz. The unit utilizes a single-stage configuration with terminal block termination and chassis mounting. Its metal housing provides IP20 protection, with dimensions of 190 x 40 x 95 mm. The filter is optimized to meet EN 61800-3:2004+A1:2011 limits for motor cable lengths up to 25m (C1) or 50m (C2).

Power Line Filter Modules Feature Summary

• Optimized performance for EN 61800-3:2004+A1:2011 standards regarding motor cable limits.
• High saturation impedance ensures reliable control of parasitic asymmetric currents even with extended cables.
• Low leakage current design allows stable operation in environments protected by 30 mA RCDs.
• Compact metal housing structure with IP20 protection rating.

Power Line Filter Modules Applications

• Elevator systems
• Pump drives
• Conveyor system drives
• HVAC system drives

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'W000' against official TDK documentation to confirm exact pinout and terminal block specifications. Ensure the selected variant matches the required 12A current rating and 530VAC voltage class for your inverter application. Cross-reference the ordering code with the manufacturer's latest datasheet to avoid discrepancies in mechanical dimensions or certification marks.

Power Line Filter Modules Selection Notes

Select this component when designing systems requiring compliance with EN 61800-3 noise emission limits for motor cables up to 50 meters. The 12A rating suits medium-power industrial drives. Consider the low leakage current feature if the installation requires compatibility with sensitive residual current devices. Verify that the chassis mounting style and IP20 enclosure fit the available panel space and environmental conditions.

Power Line Filter Modules Part Context

This part belongs to the TDK B84243* series of compact, high-performance three-phase EMC filters. Originally developed under the EPCOS brand, these components are engineered for power electronics and converter applications. The series offers various current ratings up to 280A, all sharing a common 530VAC voltage rating and optimized electromagnetic interference suppression characteristics for variable frequency drives.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers for this specific model were not identified in the provided source material. Consult official TDK documentation for direct equivalents or functional alternatives within the B84243 series that match the 12A current and 530VAC voltage requirements.
